Main dialog

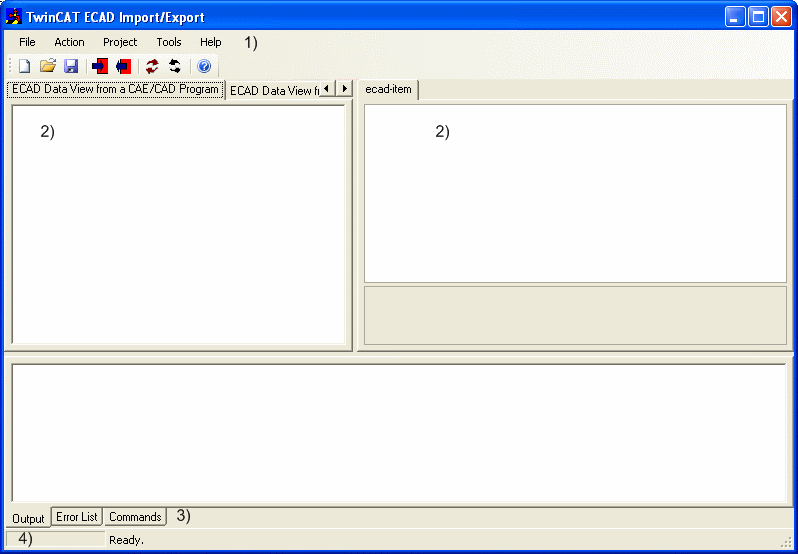

The main dialog contains the following parts:

1) Menu and toolbar part.

2) ECAD Data View and the property window

3) Output, Error List and Commands windows.

4) Processbar and status info label.

Main dialog
