Function block MCV_P4_PLATFORM

The following has been defined for instancing and calling up the PLCopen FB:

Notice

MCV_P4_PLATFORM operation criteria

Folgen

  • The generic MCV_AxesGroup of the PLCopen axes groups are instanced and called up in the ISG-MCP. The relevant code is implemented in the MCV_P4_PLATFORM FB.
  • Each PLC application using function blocks of PLCopen specification Part 4, must call the only one instance of function block MCV_P4_PLATFORM in the project, before other function blocks for motion control are called. This ensures that one instance of the generic MCV_AxesGroup FB is computed in each PLC cycle for each axes group.
  • Application programmers must ensure instancing and calling up of all PLCopen FB serving programming of the application (e.g. motion sequence) in one application program.
  • Before we call the function blocks for motion control the first time the HLI (interface to the MC) must be initialized, and the only one instance of MCV_PlatformBase in the PLC project must notify the successful initialization of MCP.
Function block MCV_P4_PLATFORM 1:

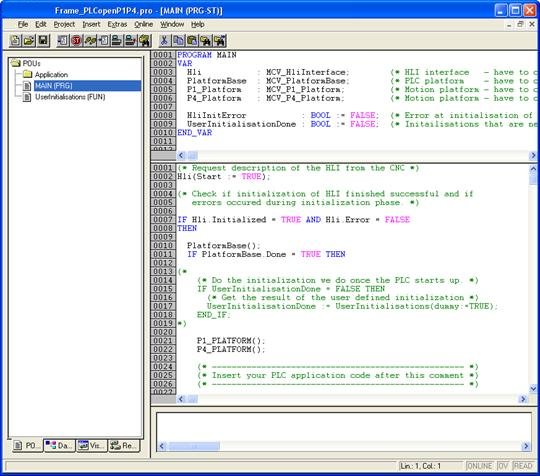

Figure 1-9: Application frame for axes group motion applications

In the MCV_P4_PLATFORM initialization an AXES_GROUP_REF structure is assigned to each axes group, available as elements of the globally defined gAxesGroupRef array.
