Standard

The following dialogs allow to configure and to use DALI devices (type 0) with the standard instruction set.

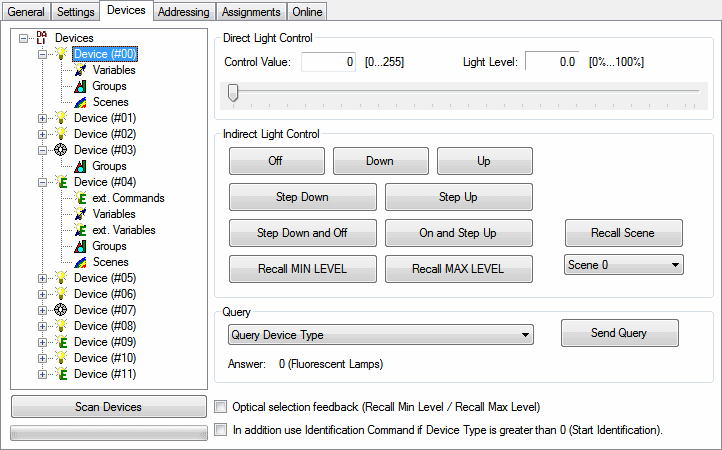

Device

For the most important functions, here are buttons for going to send a corresponding DALI-command to the selected device.

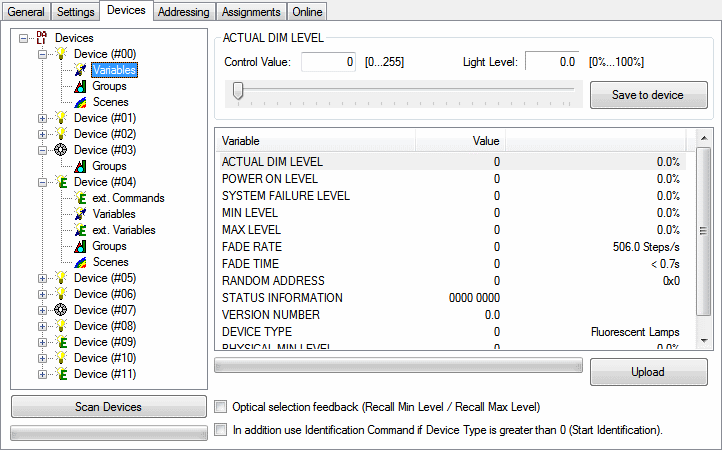

Variables

With DALI, the intelligence was not centralized to 100%. This means, that many settings and light-levels in the form of variables are stored in the ballast. The Variables-menu displays a dialog, where you can review and edit the variables of the selected DALI-device.

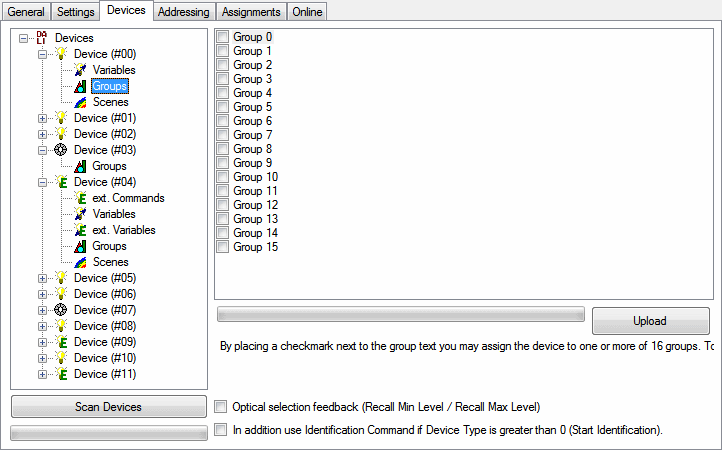

Groups

In this menu you can add each DALI-device up to 16 groups. When a DALI-device receives a command in conjunction with a parameterized group-number, it will execute this command.

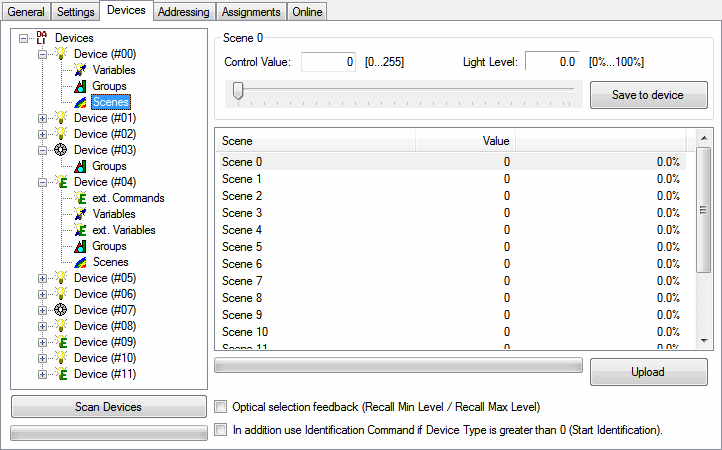

Scenes

Here you can store 16 different light-levels for scenes on each DALI-device. When a DALI-device receives a parameterized scene-number (e.g., as part of a broadcast), it will set the light-intensity for the scene. If the value of 255 (mask) is stored for this scene, the DALI-device retains the previous value.
