Installing TwinCAT during a restore process

If a TwinCAT Build is to be installed for a restore procedure, this must be configured in TcBackup. Certain conditions must be satisfied to make a complete installation possible:

  • An automatic installation script file ("*.iss") must be available. By default, a TwinCAT version is installed on hard disk C:\, corresponding to the level.
  • The extracted TwinCAT "OneFile" versions must be stored on the CD as follows:
    Installing TwinCAT during a restore process 1:

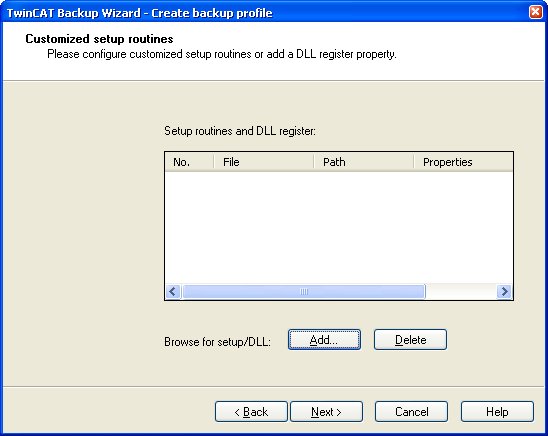

1. Add the TwinCAT installation in the backup configuration via 'Add...':
Installing TwinCAT during a restore process 2:

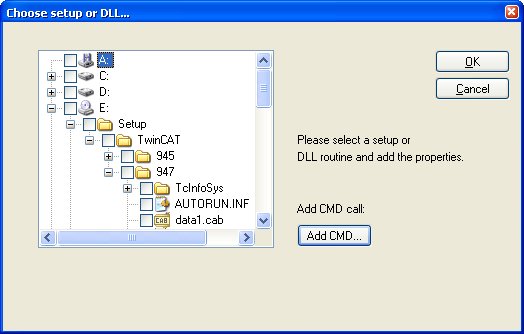

2. Browse for the 'Setup.exe' for the installation:
Installing TwinCAT during a restore process 3:

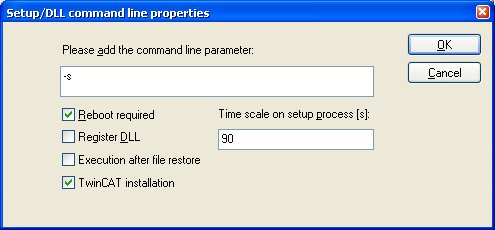

3. Set the parameters as follows:
Installing TwinCAT during a restore process 4:
