Task Management

Create new task

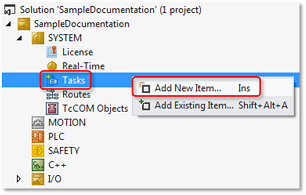

Task Management 1:

Add New Item

Opens the dialog Insert Task, where a new task can be configured.

Add Existing Item

Opens the standard dialog for selecting a file, via which an already existing task can be added to the project.

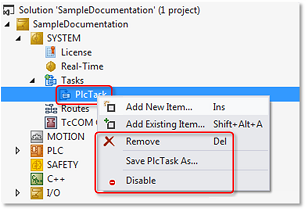

Task Management 2:

Add New Item

Opens the dialog Insert Task, where a new task can be configured.

Add Existing Item

Opens the standard dialog for selecting a file, via which an already existing task can be added to the project.

Remove

Removes the selected task from the project.

Save Plc Task as

Saves the task with the possibility to change the name.

Disable

Sets the selected task to the inactive state (not considered for the project creation), but the configurations and shortcuts are preserved and can be reactivated.

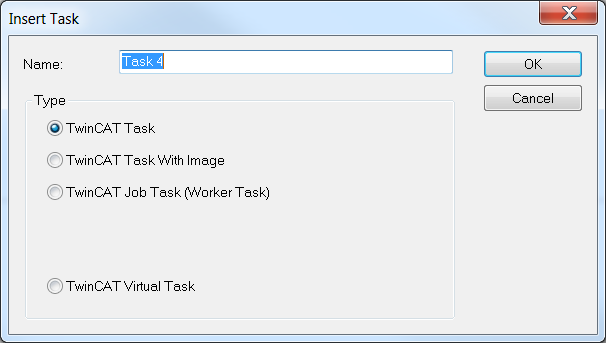

Dialog Insert Task

Task Management 3:

Name

Name of the task

OK

The task is created.

Cancel

The process is canceled and the dialog is closed.

TwinCAT Task

Selection of a "normal" TwinCAT Task.

TwinCAT Task With Image

Selection of a task with its own process image.

TwinCAT Job Task (Worker Task)

Selection of a Job Task.
