Attribute 'monitoring_display'

Available from TwinCAT 3.1 Build 4026

This pragma in the declaration of a function block or structure causes the current value of the specified component (property or variable) to be displayed in the monitoring.

The value of the function block or structure component is then displayed in the top line of the monitoring for variables of the function block or structure type.

If you choose a property as the component to be displayed, the property must be declared with the attribute {attribute 'monitoring' := 'call'} (see also: Attribute 'monitoring').

Syntax: {attribute 'monitoring_display' := '<component name>'}

Insertion location: Above the first line of the declaration

Example

Structure ST_Sample:

{attribute 'monitoring_display' := 'sValue'}
TYPE ST_Sample:
STRUCT
    nVar1  : INT := 1;
    nVar2  : INT := 2;
    sValue : STRING := 'Value to be monitored';
END_STRUCT
END_TYPE

Function block FB_Sample_Var:

{attribute 'monitoring_display' := 'nB'}
FUNCTION_BLOCK FB_Sample_Var
VAR
    nA    : INT;
    nB    : INT := 10;
END_VAR

Function block FB_Sample_Prop:

{attribute 'monitoring_display' := 'P_B'}
FUNCTION_BLOCK FB_Sample_Prop
VAR
    nA    : INT;
    nB    : INT := 10;
END_VAR

Property FB_Sample_Prop.P_A:

PROPERTY P_A : INT

P_A := 2*nA;

Property FB_Sample_Prop.P_B:

{attribute 'monitoring':='call'}
PROPERTY P_B : INT

P_B := 2*nB;

Program MAIN:

PROGRAM MAIN
VAR
    stSample      : ST_Sample;
    fbSampleVar   : FB_Sample_Var;
    fbSampleProp  : FB_Sample_Prop;
END_VAR

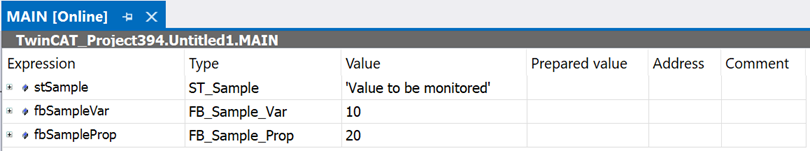

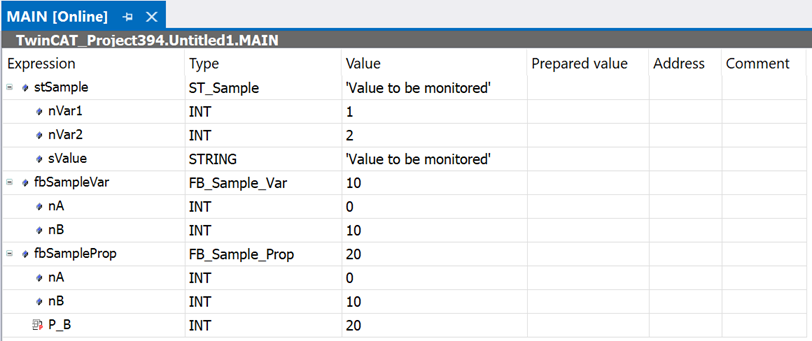

The respective selected component is displayed online in the instance line for the structure instance and for the two FB instances.
