Control appearance customization

The Graphic Control property can be used to change the default graphical appearance of the control.

Using SVG images within UserControls designated for the Graphic Control property allows styles which are defined in the HMI Process Library to be followed. Some recommendations should be implemented here.

In general, the following should be selected for the Graphic Control property *.usercontrol element with desired graphical presentation of the control:

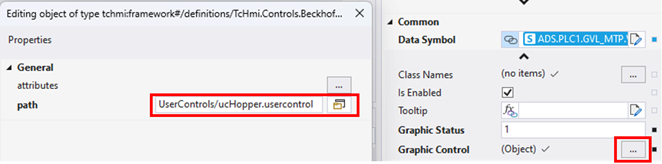

Control appearance customization 1:
