MonAnaVlvFaceplate

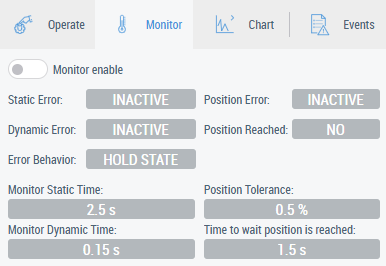

An example of MonAnaVlvFaceplate is shown below.
The following table shows the description of MonAnaVlvFaceplate elements:
# | Element | Description |
|---|---|---|
1 | Monitor enable | Enable monitoring |
2 | Static Error | Static error indicator |
3 | Dynamic Error | Dynamic error indicator |
4 | Error Behavior | Behavior in the event of an error (hold state or go to SafePos) |
5 | Position Error | Indicator that the maximum travel time (#10 in this table) has been exceeded |
6 | Position Reached | Indicator that the target position has been reached with the set Position Tolerance (#9 in this table) |
7 | Monitor Static Time | Time parameter (MonStatTi) for the static error |
8 | Monitor Dynamic Time | Time parameter (MonDynTi) for the dynamic error |
9 | Position Tolerance | Position tolerance parameter for determining that the setpoint position has been reached |
10 | Time to wait position is reached | Parameter to set the maximum travel time (MonPosTi) |
