MonBinDrvFaceplate and MonBinVlvFaceplate

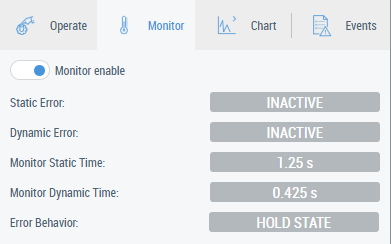

MonBinDrvFaceplate and MonBinVlvFaceplate have the same content. An example of the faceplate is shown below.
The following table shows the description of MonBinDrvFaceplate and MonBinVlvFaceplate elements:
# | Element | Description |
|---|---|---|
1 | Monitor enable | Enable monitoring |
2 | Static Error | Static error indicator |
3 | Dynamic Error | Dynamic error indicator |
4 | Monitor Static Time | Time parameter (MonStatTi) for the static error |
5 | Monitor Dynamic Time | Time parameter (MonDynTi) for the dynamic error |
6 | Error Behavior | Behavior in the event of an error (hold state or go to SafePos) |
