Overview

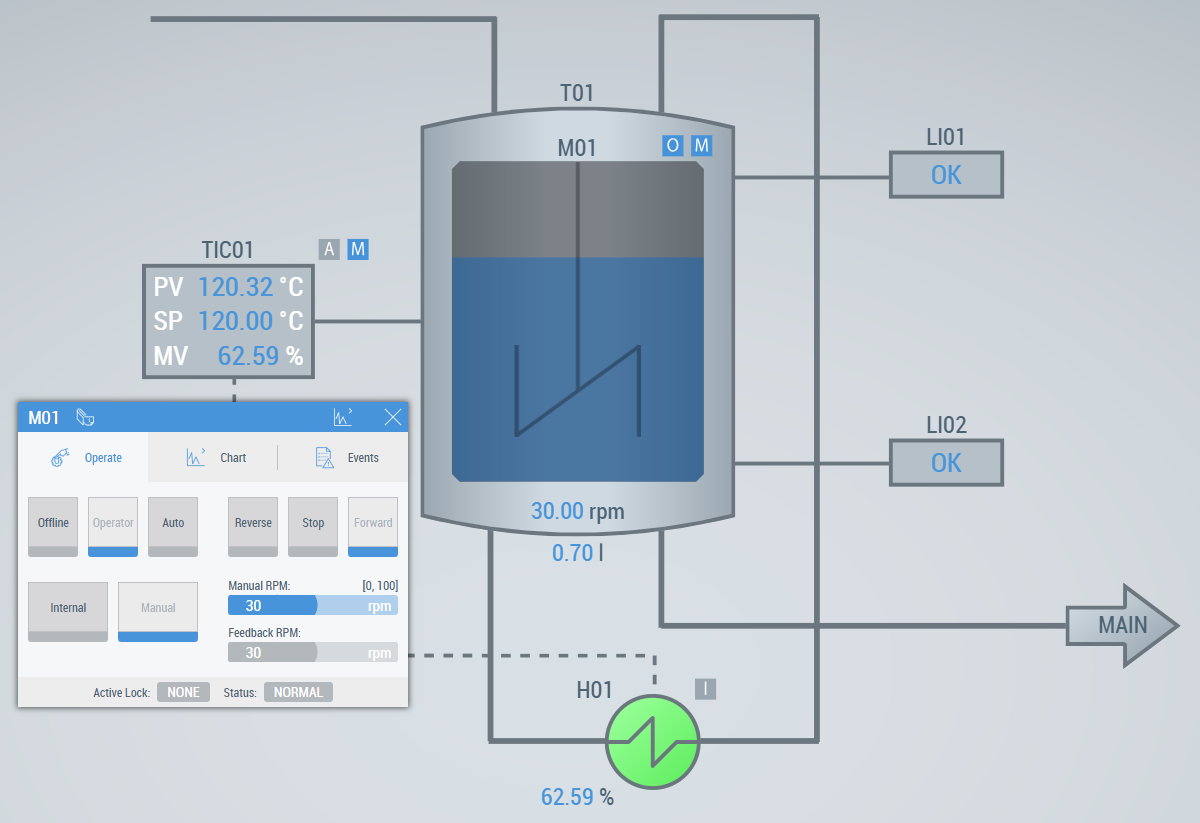

The TwinCAT HMI Process Library includes additional controls for the TwinCAT HMI (TE/TF2000), designed specifically for the process industry, but it can be used for applications in other areas as well. These controls feature clear graphical symbols that illustrate P&ID elements, complete with all essential information. The controls come with faceplates that are either pre-configured, customizable, or created by the user.

The controls can be linked to the PLC variables/object in various ways: each property can link to a separate PLC variable, or the entire PLC object (e.g. of an FB) can link to the entire control.

The TwinCAT HMI Process Library combines many existing functionalities into ready-to-use controls. For example, TwinCAT Scope charts can be displayed as well as event grids or historize charts.
