ADS device identification
The unique identification of ADS devices is implemented with the aid of two identifiers:
- PortNr
- NetId
AMS ports
ADS devices in a TwinCAT message router are uniquely identified by a number, called the ADS port no. This is specified and fixed for ADS devices, whereas pure ADS client applications (e.g. a HMI system) are allocated a variable port number when they first access the message router.
The following AMS port numbers are already assigned:
AMS port | Device |
|---|---|
1 | ADS router |
2 | AMS debugger |
10 | TCom server |
11 | TCom server task, RT context |
12 | TCom server, passive level |
20 | TwinCAT debugger |
21 | TwinCAT debugger task |
30 | License server |
100 | Logger |
110 | Event logger |
120 | Application for EtherCAT devices |
130 | Event logger user mode (V2) |
131 | Event logger real-time (V2) |
132 | Event logger publisher (V2) |
200 | Ring 0 real-time |
290 | Ring 0 trace |
300 | Ring 0 IO |
400 | Ring 0 PLC (legacy) |
500 | Ring 0 NC |
501 | Ring 0 NC SEC |
511 | Ring 0 NC SPP |
520 | NC instance |
550 | Ring ISG |
600 | Ring 0 CNC |
700 | Ring 0 line |
800 | Ring 0 TC2 PLC |
801 | TC2 PLC runtime system 1 |
811 | TC2 PLC runtime system 2 |
821 | TC2 PLC runtime system 3 |
831 | TC2 PLC runtime system 4 |
850 | Ring 0 TC3 PLC |
851 | TC3 PLC runtime system 1 |
852 | TC3 PLC runtime system 2 |
853 | TC3 PLC runtime system 3 |
854 - … | TC3 PLC runtime system 4 - … |
900 | Cam controller |
950 | CAM tool |
1000–1199 | Ring 0 IO ports |
2000 | Ring 0 user |
2500 | Crestron server |
10000 | System service |
10201 | TCP/IP server |
10300 | System Manager |
10400 | SMS server |
10500 | Modbus server |
10502 | AMS logger |
10600 | XML data server |
10700 | Automatic configuration |
10800 | PLC control |
10900 | FTP client |
11000 | NC control system |
11500 | NC interpreter |
11600 | GST interpreter |
12000 | Track control |
13000 | CAM control |
14000 | Scope server |
14100 | Condition monitoring |
15000 | Sine CH1 |
16000 | CONTROL NET |
17000 | OPC server |
17500 | OPC client |
18000 | Mail server |
19000 | Virtual COM EL60xx |
19100 | Management server |
19200 | Miele@home server |
19300 | CP-Link 3 |
19310 | Touch lock |
19500 | Vision service |
19800 | HMI server |
21372 | Database server |
25000–25999 | Reserved port range for ADS servers |
25013 | FIAS server |
25014 | Bang&Olufsen server |
26000–26999 | Private port range for customers |
32768–65535 | Reserved port range for ADS clients |
AMS NetId
Each TwinCAT device in the network is identified by the AMS NetId. The AMS NetId consists of six octets. The first four octets can be freely selected. The last two octets (usually .1.1) serve as subnet mask for fieldbuses or further devices. The AMS NetId must be unique for all communication partners.
Configuration:

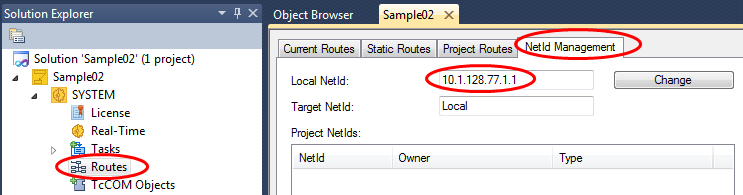

The AMS NetId of a local or remote TwinCAT device can be set in SYSTEM\Routes\NetId Management of a TC3 project.
Alternatively, the AMS NetId can be configured locally via the Router category in the TwinCAT SysTray menu. The device must be restarted after changing the AMS NetId.
