Debugging the state machine with the Usermode Runtime
The state machine of the TcCOM modules cannot be debugged in the real-time environment, as the debugger itself is still being started at that point.
The Usermode Runtime can be used for this.
- A TwinCAT C++ project is loaded in Visual Studio
- 1. Activate the project in a Usermode Runtime
- 2. Open a second Visual Studio instance

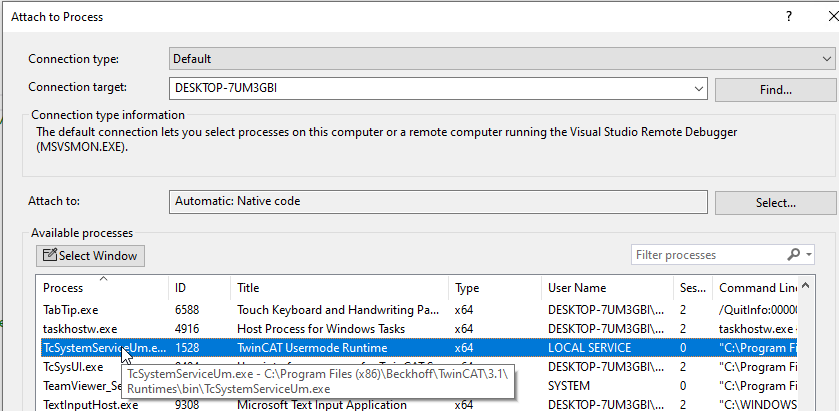

- 3. Use the normal Visual Studio C++ debugger to connect to the Usermode Runtime process. Debug -> Attach to Process ... -> Selection of TcSystemServiceUm.exe
- 4. In this instance, add the TwinCAT C++ project that you want to debug. Set breakpoints in the transitions.

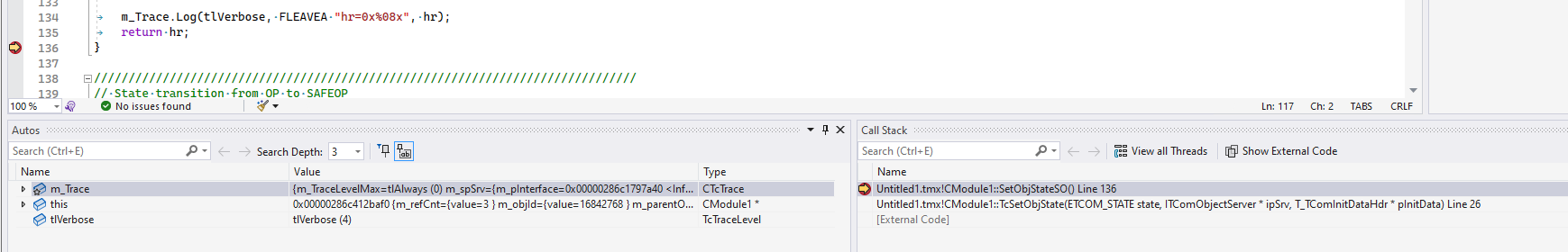

- 5. Start the Usermode Runtime - the breakpoints are reached.
