Accessories for mounting

ZS5301-0003 – Bracket for wall mounting

This bracket is used to mount the devices on a wall/panel without utilizing the DIN rail. The bracket can be mounted without detaching the DIN rail brackets from the power supply.

Accessories for mounting 1:

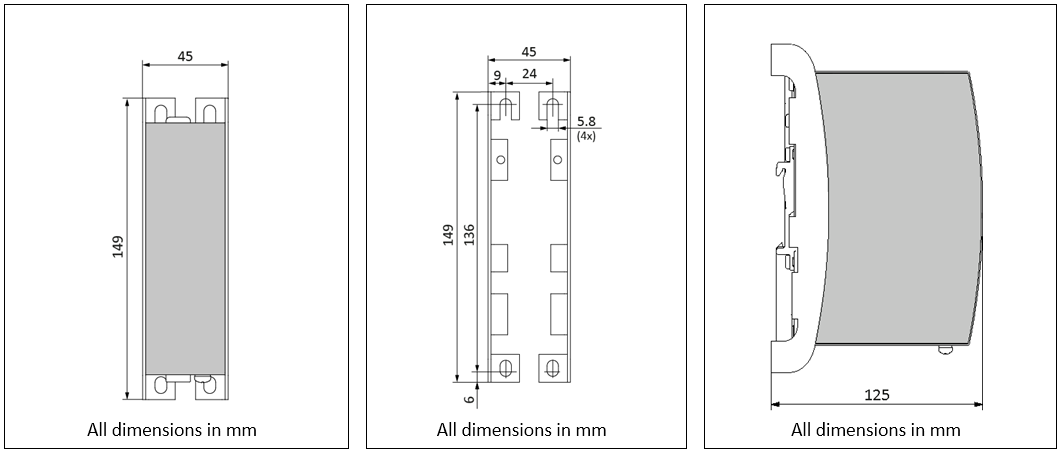

ZS5301-0003, Hole pattern; Side view
Accessories for mounting 2:

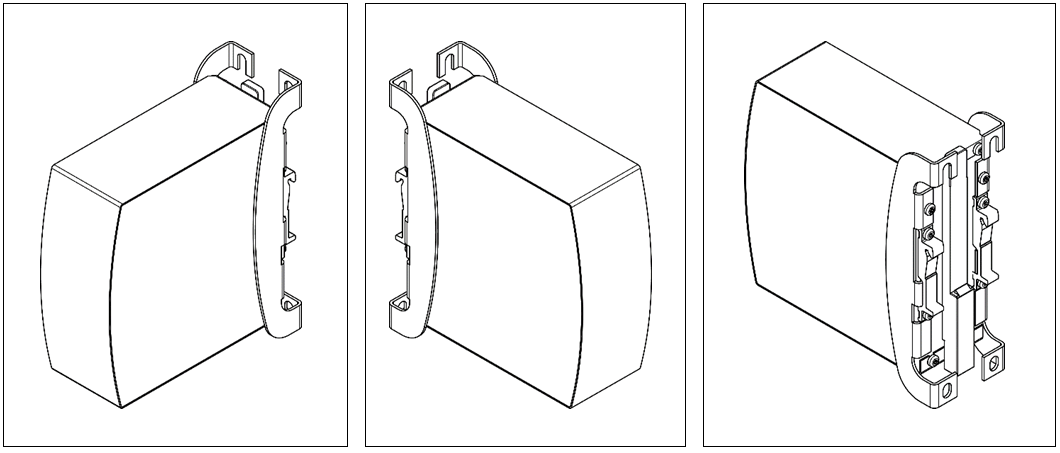

Isometric view

ZS5301-0005 – Bracket for side mounting

Thia ZS5301-0005 bracket is used to mount the device sideways with or without utilizing a DIN-rail to save installation depth.

The two aluminum brackets and the black plastic slider of the unit have to be detached, so that the ZS5301-0005 steel bracket can be mounted.

For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on the ZS5301-0005 steel bracket.

PSU for illustration purpose only.

Accessories for mounting 3:

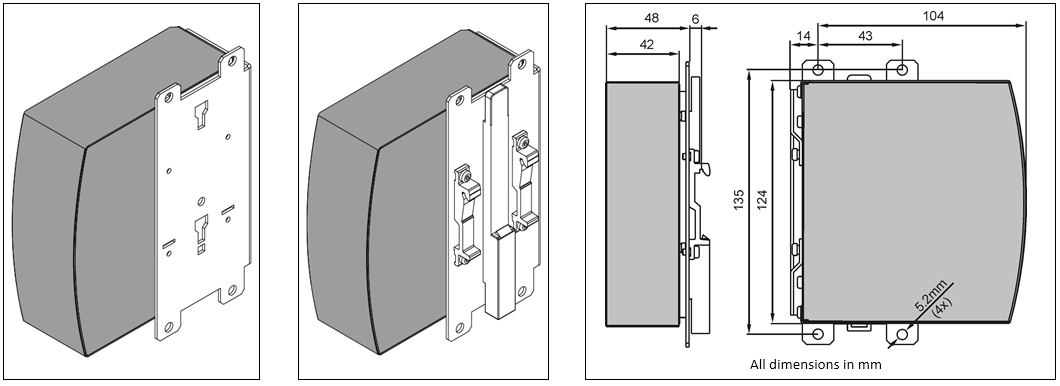

Side mounting without/with DIN-rail brackets; Hole pattern
