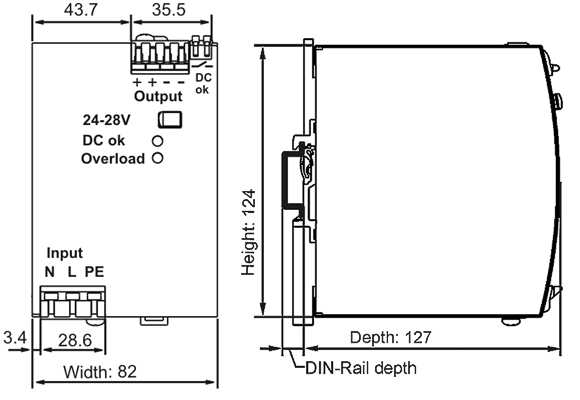

Dimensions and weight

Overall width

82 mm

Height

124 mm

Depth

127 mm
The height of the DIN rails must be added to the depth of the device to calculate the total installation depth required

Weight

1200 g

DIN rail

Use 35 mm DIN rails according to EN 60715 or EN 50022 with a height of 7.5 or 15 mm.
The height of the DIN rail must be added to the depth of the unit (127 mm) to calculate the total installation depth required.

Housing material

Housing: Aluminum alloy Cover: galvanized steel

Installation clearances

See chapter on Safety instructions and installation requirements
