Efficiency and losses
|
| AC 100 V | AC 120 V | AC 230 V |
|
|---|---|---|---|---|---|
Efficiency | Typ. | 94.2% | 94.8% | 96.2% | At 48 V, 10 A |
Typ. | 94.1% | 94.8% | 96.1% | At 48 V, 12 A (Extra Power) | |
Average efficiency*) | Typ. | 93.6% | 94.1% | 95.1% | 25% at 2.5 A, 25% at 5 A, |
Losses | Typ. | 1.6 W | 1.7 W | 2.1 W | With activated shutdown (0x7000:01 "Disable output") |
Typ. | 6.3 W | 5.8 W | 4.8 W | At 48 V, 0 A | |
Typ. | 16.3 W | 13.4 W | 12.0 W | At 48 V, 5 A | |
Typ. | 29.5 W | 26.2 W | 18.9 W | At 48 V, 10 A | |
Typ. | 36.1 W | 31.7 W | 23.1 W | At 48 V, 12 A (Extra Power) |
*) The average efficiency is an assumption for a typical application where the power supply is loaded with
25% of the nominal load for 25% of the time,
50% of the nominal load for another 25% of the time,
75% of the nominal load for another 25% of the time and with
100% of the nominal load for the rest of the time.

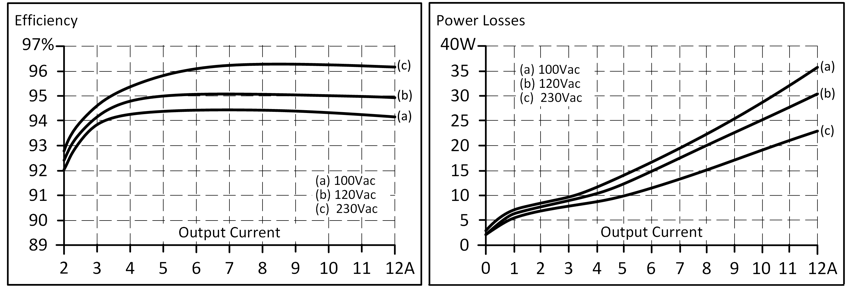

Fig.9: Efficiency vs. output current at 48 V typ.; Losses vs. output current 48 V typ.

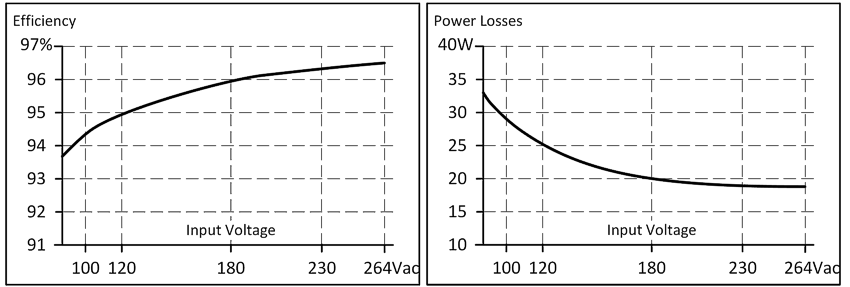

Fig.10: Efficiency vs. input voltage at 48 V, 10 A, typ.; Losses vs. input voltage at 48 V, 10 A, typ.
