Switching output via EtherCAT

Switching output via EtherCAT 1:

Switching the outputs when the system is at a standstill or in the event of an error via "Disable output"

The output voltage of the device can be disabled via "Disable output". In the event of a system standstill or fault, the power supply and corresponding downstream system components can be switched off and on again via TwinCAT in a targeted and location-independent manner.

1. Enable the PDO 0x1600 "PSU Outputs" via the "Process data" tab
"Disable output" is displayed in the tree structure. The power supply output can be disabled via the "Disable output" bit.
2. Restarting the EtherCAT system or reloading the configuration in Config mode (F4) restarts the EtherCAT communication and the process data is transferred.
3. If the "Disable output" bit is set to TRUE, the DC output voltage of the device is switched off.
The output remains disabled as long as "Disable output" = TRUE.
The voltage at the output returns when the "Disable output" bit is disabled again.

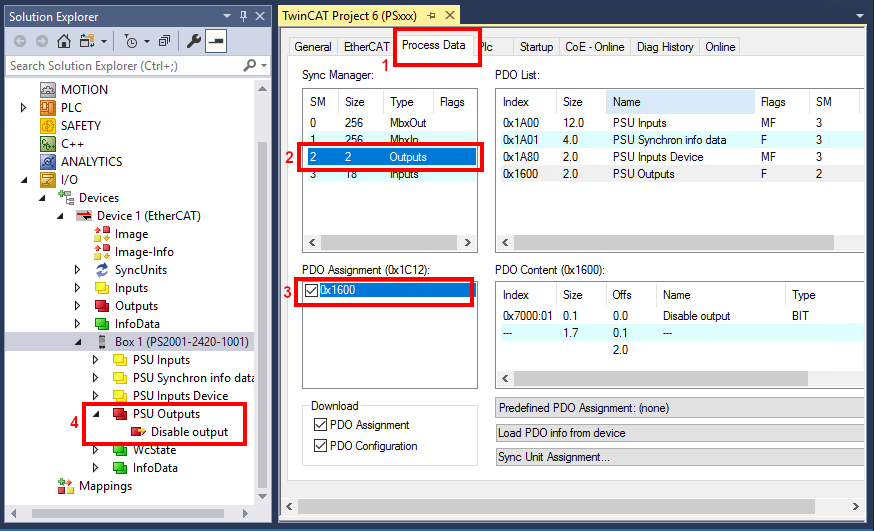

Switching output via EtherCAT 2:

Enabling "Disable Output" via the Process Data tab using the PS2001-2420-1001 as an example
