DC-OK relay contact
This feature monitors the output voltage at the output terminals of an active power supply.

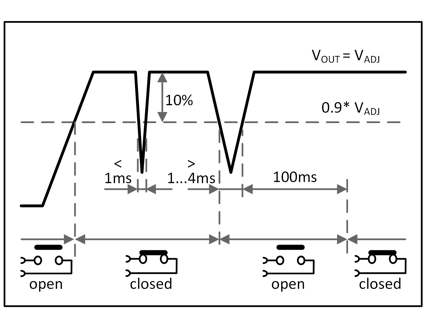

The contact closes | when the output voltage typically reaches 90% of the set output voltage. |
The contact opens | when the output voltage drops more than 10% below the set output voltage. Short drops are extended to a signal length of 100ms. Drops that are shorter than 1ms are ignored. |
Switching hysteresis | 1 V |
Contact load capacity | Maximum 60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A, ohmic load |
Minimum permissible load: 1mA at 5Vdc | |
Insulation voltage | See the dielectric strength table in the chapter on Safety features |
