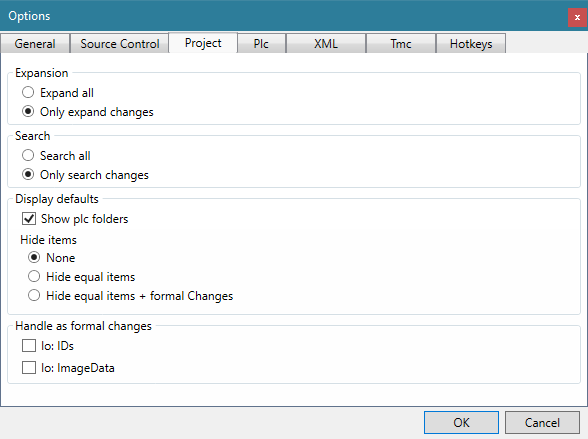

Project tab
All settings that are important in the TwinCAT3 project comparison window are listed on the Project tab.
In the Expansion area you can specify whether the complete tree or only the parts containing changes are expanded when opening a project file.
Expand all | All elements are expanded. |
Only expand changes | Only the changes are expanded. |
In the Search area you can specify whether search queries within the TcProjectCompare include only the changed elements or all elements.
Search all | All elements are searched. |
Only search changes | Only changes are searched. |
In the Display Defaults area you can define the default values for the options Show Plc Folders and Hide Items.
Show Plc Folders | Display the PLC folder structure. |
Hide Items -> None | No items are hidden. |
Hide Items -> Hide equal items | Equal items are hidden. |
Hide Items -> Hide equal items + formal Changes | Equal items and formal changes are hidden. |
In the Handle as formal changes area, you can specify what are regarded as formal changes.
Io:IDs | In the TwinCAT I/O node, all changes to the IDs of the sub-items are displayed as formal changes. |
Io:ImageData | In the TwinCAT I/O node, all changes to the ImageData (the images displayed in the tree) are displayed as formal changes. |
