HMI-Display

The active M/H-Functions are available via ADS and can be displayed on the graphical user interface.

There exists a channel specific and an axis specific view.

Active M-Function, channel specific
Description	Displays the active channel specific M/H-functions on the PLC-interface (HLI).
Type	Structure: UNS32 number UNS32 activ-M/H[12]
Value range	[ 0; MAX_UNS32 ]
HMI elements	mc_active_m_functions_r, mc_active_h_functions_r
Zugriff	Read
IndexOffset_ADS	0x3d, 0x91 (IndexGroup_ADS = 0x000201<ii> with <ii> = Kanal, [ 1 ; max])

**Active M/H-Function, axis specific**
Description	Displays the active axis specific M/H-functions on the PLC-interface (HLI).
Type	Struktur: UNS32 Anzahl UNS32 active-M/H[12]
Value range	[ 0; MAX_UNS32 ]
HMI elements	ac_<I>_active_m_functions_r, ac_<I>_active_h_functions_r
Zugriff	Read
IndexOffset_ADS	0x13, 0x17 (IndexGroup_ADS = 0x000202<ii> mit <ii> = Achsindex, [1;max])

Example

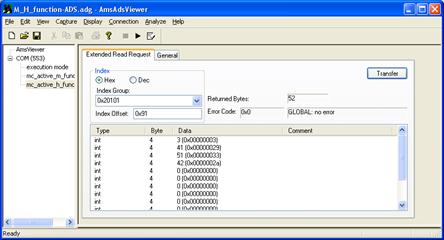

After start of MDI H41, H42, H51 following three H-Functions are waiting for PLC-acknowledge

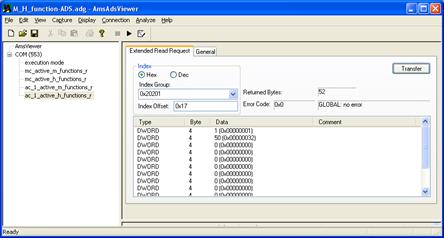

After MDI X[H50] the axis specific H-Function is waiting for PLC-acknowledge.
