AMS Router

The AMS router administered the TCP/IP connections to other target systems.

step 1: Click onto Options in the menu bar.

step 2: Hover onto Communication channel and click onto via ADS...

AMS Router 1:

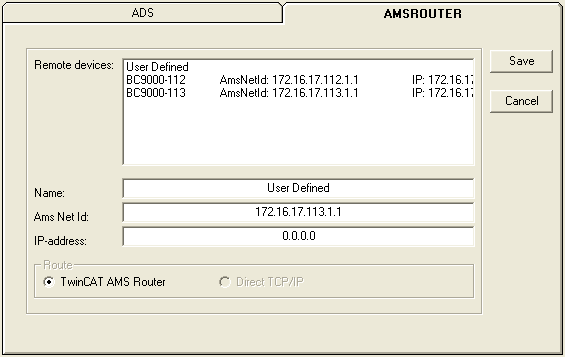

step 3: The following menu will open. Devices, which already had been configured in TwinCAT AMS Router, will be shown in the list. Manually, you can add new devices by entering their Name, AmsNetId and IP-Adress and click on Save.

AMS Router 2:



Name

Name of the target system.

AmsNetID

AmsNetId of the target system

IP-Adress

Address of the target system. These are depending on the transfer protocol you are using. Next to TCP/IP also Profibus and other devices, which support the ADS protocol are possible.

Save

Saves the entries into the list of Remote Devices.

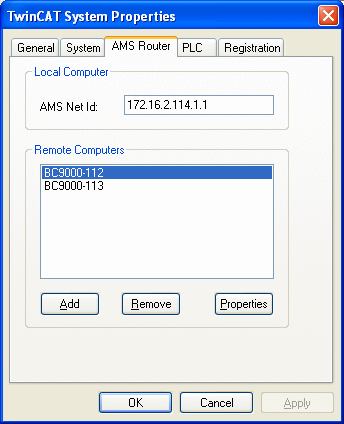

Also have a look in TwinCAT AMS Router
