How to restore a terminal station?

The Restore station-settings from file... can upload the total terminal station setting.

step 1: Double click Restore station-settings from file...

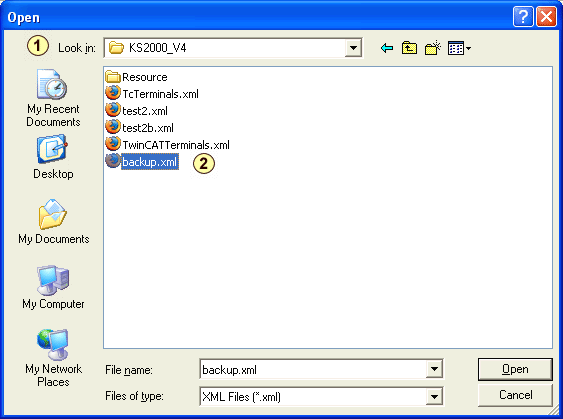

step 2: The following window will open.

1. Select the folder where you have saved your configuration file.
2. Select the configuration file. (e.g. Backup.xml)
3. Click Open (Öffnen).

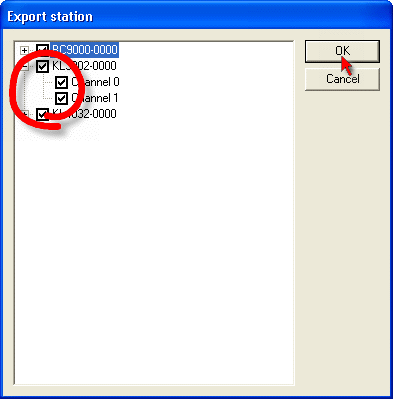

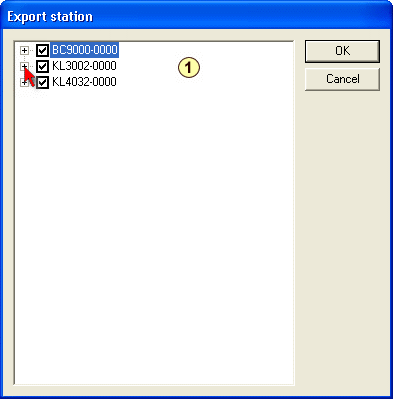

step 3: The following window will open. If you click onto the "+" more selections are possible. Please have a look onto the next picture to get an better idea.

By selecting or deselecting the box you can decide, which information is getting saved. When your selection is finished click OK.

step 4: Now the export process starts.

1. Shows you the progress status. During the export progress the Close Button is blanked out.
2. With the scroll bar you can scroll through the protocol.

When you are finished click Close to close the window.
