How to export a terminal script?

The export feature is a needful tool to save the register of a terminal into a script file.

Exception: Not every terminal provides the export feature. Only terminals who have a microprocessor can exchange bidirectional data with the higher-level control system.

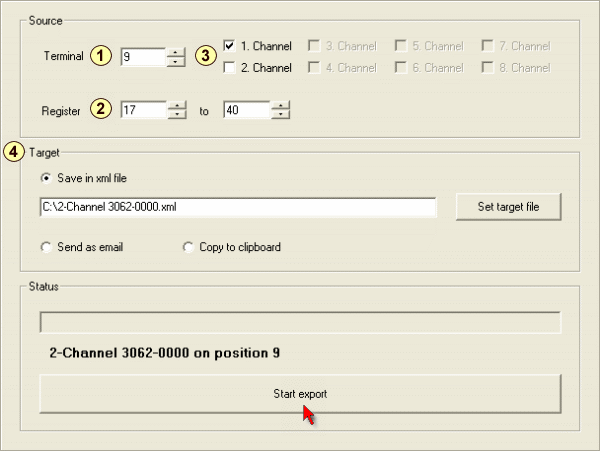

step 1: click onto Reports - Terminal:Register Documentation

step 2: with the up/down button you can choose the Terminal you want to save

step 3: tick the Channel you want to save

step 4: with the up/down button you can choose the beginning and ending of the Register you want to save

step 5: with a tick you can choose the Target where you want to save the file to

• Save in xml file (click Set target file for a easier handling)
• Send as email
• Copy to clipboard

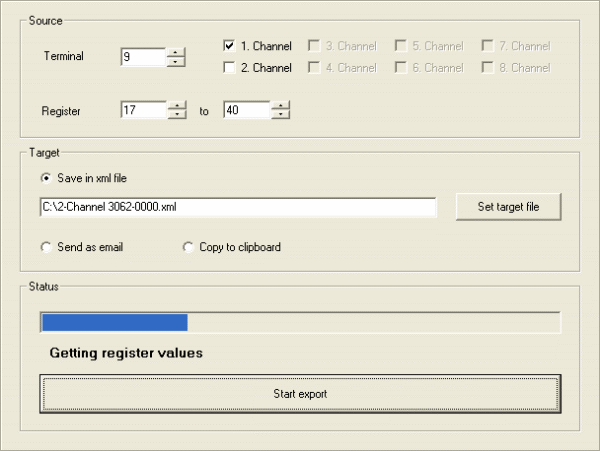

step 6: click Start export
