How to write a script into a terminal?

f you use standard configurations for your terminals, than script writing is a feature that can save you time and money. Because with a few clicks, you can do the configuration for all your terminals.

step 1: click Online

step 2: hover onto Terminal and click Script-Init...

How to write a script into a terminal? 1:

step 3: choose a script file and click open (öffnen). (example file: TemplateScriptTerm.xml)

How to write a script into a terminal? 2:

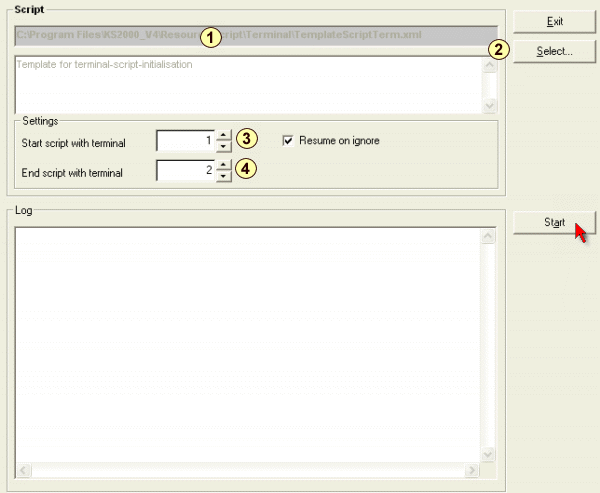

step 4: the following menu will appear. If you have chosen the wrong file (1) click Select... (2)

step 5: choose the start (3) and the end (4) terminal where the script should be written in.

step 6: click start

How to write a script into a terminal? 3:

step 6: Click Exit to leave the menu.

How to write a script into a terminal? 4:

Note :

How to write a script into a terminal? 5:

Some terminals require reboot to enable new settings, so please power cycle the station.

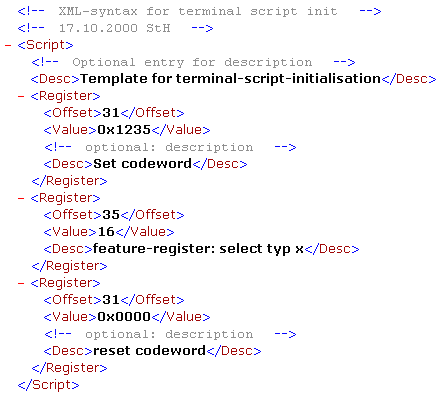

For definition of  the schema of script-file for terminals see sample file under "...\KS2000\Resource\Scripts\Coupler\TemplateScriptTerm.xml"



How to write a script into a terminal? 6:
