How to write a script into a coupler or controller?

If you use standard configurations for your coupler or controller, then script writing is a feature that can save you time and money. Because with a few clicks, you can do the configuration the way you want to have it.

step 1: click Online

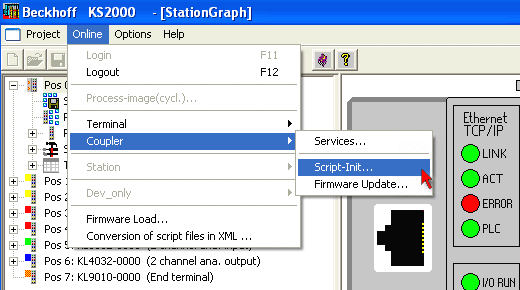

step 2: hover onto Coupler and click Script-Init...

How to write a script into a coupler or controller? 1:

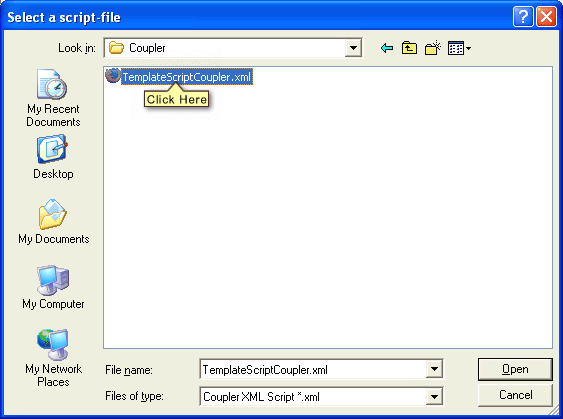

step 3: choose a script file and click open (öffnen). (example file: TemplateScriptCoupler.xml)

How to write a script into a coupler or controller? 2:

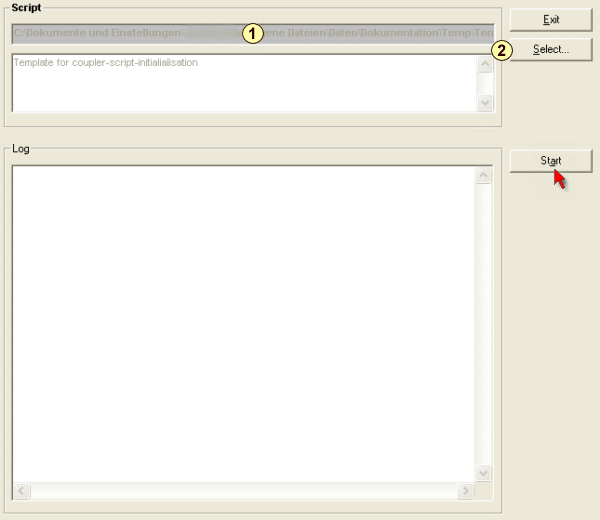

step 4: the following menu will appear. If you have chosen the wrong file (1) click Select... (2)

step 5: click start

How to write a script into a coupler or controller? 3:

step 5: the process is completed. click OK (JA)

How to write a script into a coupler or controller? 4:

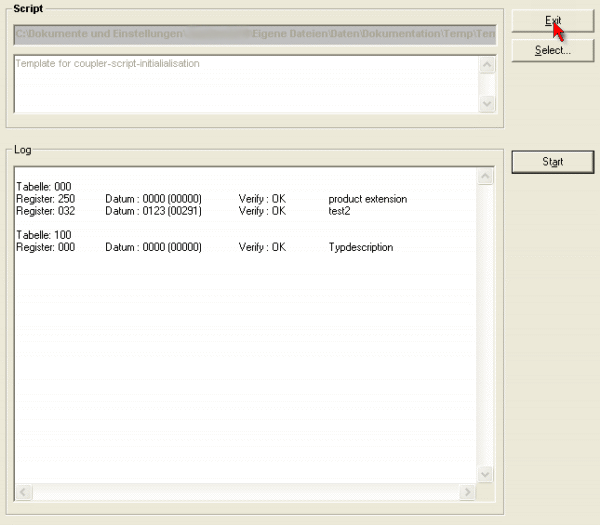

step 6: Click Exit to leave the menu.

How to write a script into a coupler or controller? 5:
How to write a script into a coupler or controller? 6:

Devices require reboot to enable new settings, so please power cycle the station.

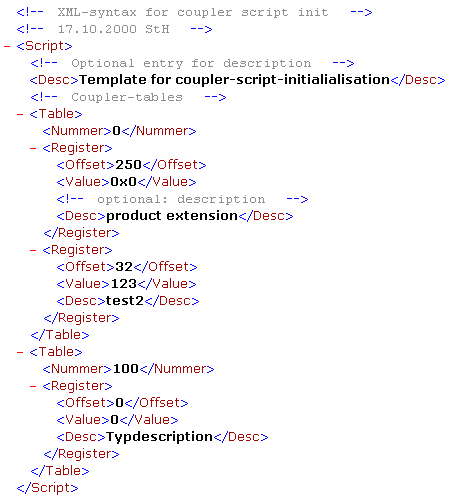

For definition of  the schema of script-file for buscontrollers and buscouplers see sample file under "...\KS2000\Resource\Scripts\Coupler\TemplateScriptCoupler.xml"

How to write a script into a coupler or controller? 7:
