How to get online and offline?

To get online:

Select from the tool bar the Login button.

click the Login button

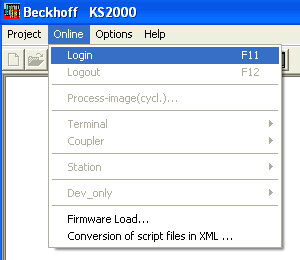

step 1: click on Online in the menu bar.

step 2: click Login.

Dialog: See this topic for further information

Example with BC/BK

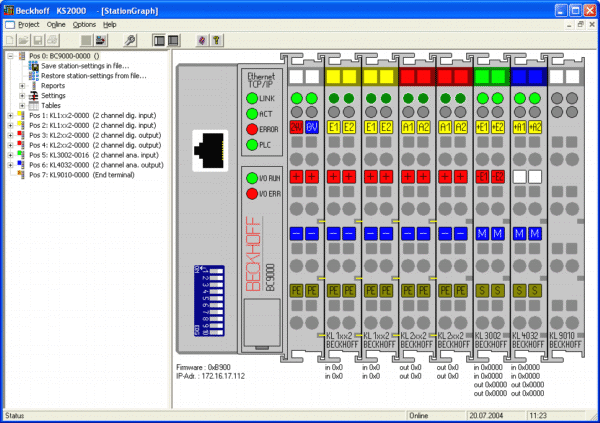

Fig.27: Online screen when a BC/BK with bus terminals is connected

Example with fieldbus box

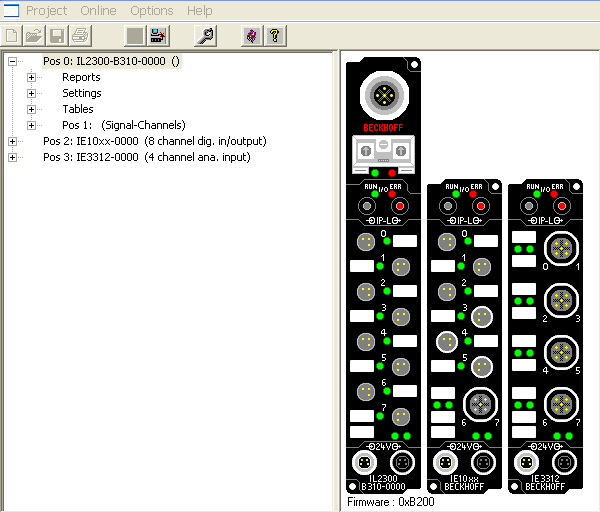

Fig.28: Online screen when a fieldbus box is connected

Example with CX

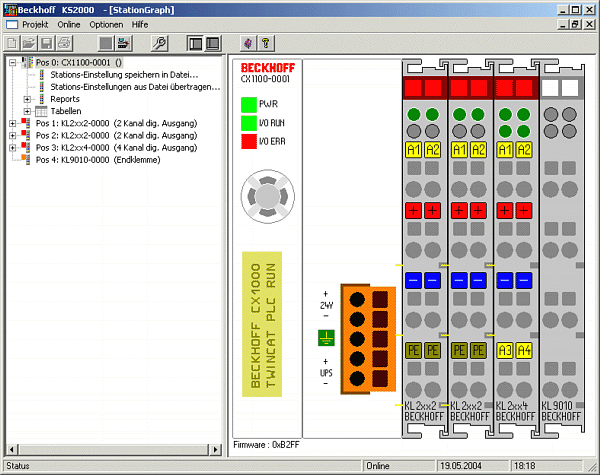

Fig.29: Online screen when a CX is connected

To get offline:

Select from the tool bar the Logout button.

click the Logout button

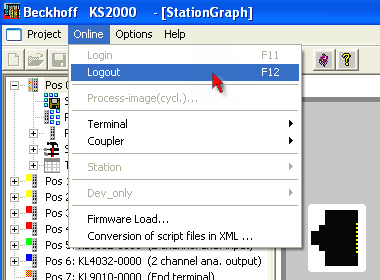

step 1: click on Online in the menu bar.

step 2: click Logout.
