The KS2000 graphical display

The KS2000 graphical display provides you an overview of the most important information of a terminal station.

1. Graphic display of the connected coupler/controller and terminals
2. Gives you information about the:
• - Firmware- IP-Adr
• - Process data
3. The mouse pointer will change when you hover onto the outputs. With a double click you can force a value to this channel.

Example

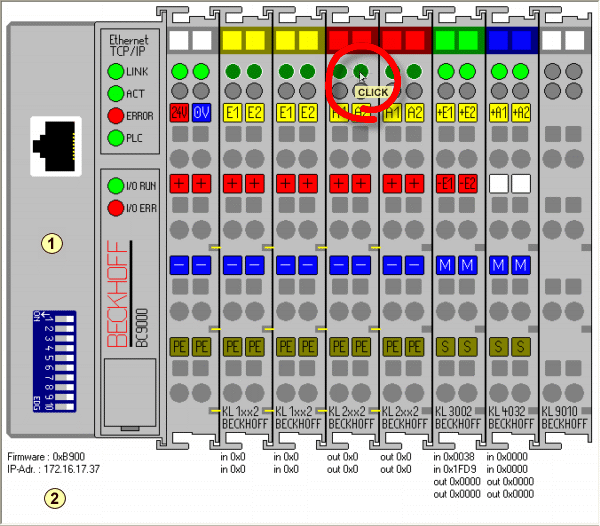

Fig.22: Graphic display of the connected coupler/controller and terminals
