KL6811 configuration

Connect the configuration interface of your fieldbus coupler with the serial interface of your PC via the configuration cable and start the KS2000 configuration software.

KL6811 configuration 1:

Click on the Login button. The configuration software will now load the information for the connected fieldbus station.
In the example shown, this is

  • a BK9000 Bus Coupler for Ethernet
  • a KL1xx2 digital input terminal
  • a KL6811 DALI Master Terminal
  • a KL9010 bus end terminal

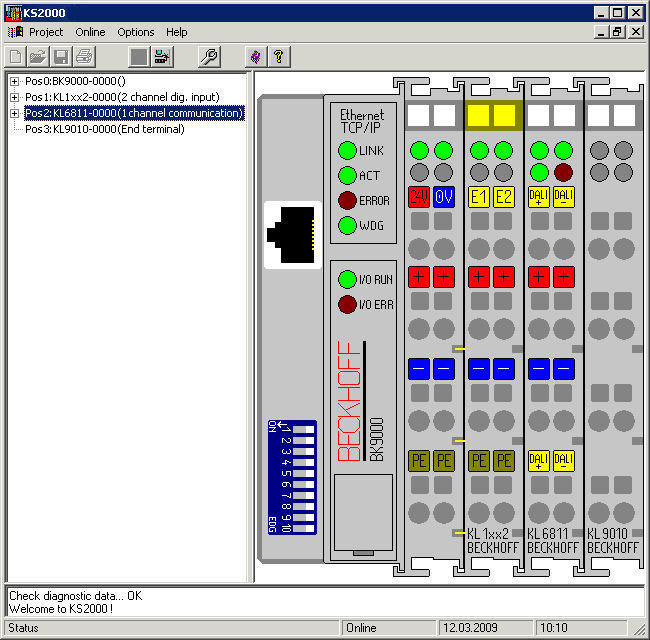

KL6811 configuration 2:
Display of the fieldbus station in KS2000

The left-hand KS2000 window displays the terminals of the fieldbus station in a tree structure.
The right-hand KS2000 window contains a graphic display of the fieldbus station terminals.

In the tree structure of the left-hand window, click on the plus-sign next to the terminal whose parameters you wish to change (item 2 in the example).

KL6811 configuration 3:
KS2000 tree branches for channel 1 of the KL6811

For the KL6811, the branches Register, Settings and ProcData are displayed:
