KL5152/KS5152 (KL5151-0050) - Contact assignment and LEDs

WARNING

Risk of injury through electric shock and damage to the device!

Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals.

KL5152/KS5152 (KL5151-0050) - Contact assignment and LEDs 1:

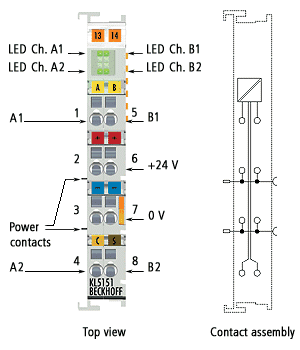

KL5152 - Contact assignment

KL5152/KS5152 (KL5151-0050) - Contact assignment

Terminal point

No.

In the encoder interface operating mode*
connection for

In the counter operating mode*
connection for

A1

1

Input A for encoder 1

Counter input

+24 V

2

Power contact +24 V (internally connected to terminal point 6)

0 V

3

Power contact 0 V (internally connected to terminal point 7)

A2

4

Input A for encoder 2

Counter enable (gate input for the counter operating mode)

B1

5

Input B for encoder 1

Counting direction:
high = down
low = up

+24 V

6

Power contact +24 V (internally connected to terminal point 2)

0 V

7

Power contact 0 V (internally connected to terminal point 3)

B2

8

Input B for encoder 2

no function

*) The operating mode is set with bit R32.15 of the feature register.

KL5152/KS5152 (KL5151-0050) - LED indicators

Signal LED

Function

Encoder

Ch. A1

Lights up when a signal is present at input A1.

1

Ch. B1

Lights up when a signal is present at input B1.

Ch. A2

Lights up when a signal is present at input A2.

2

Ch. B2

Lights up when a signal is present at input B2.
