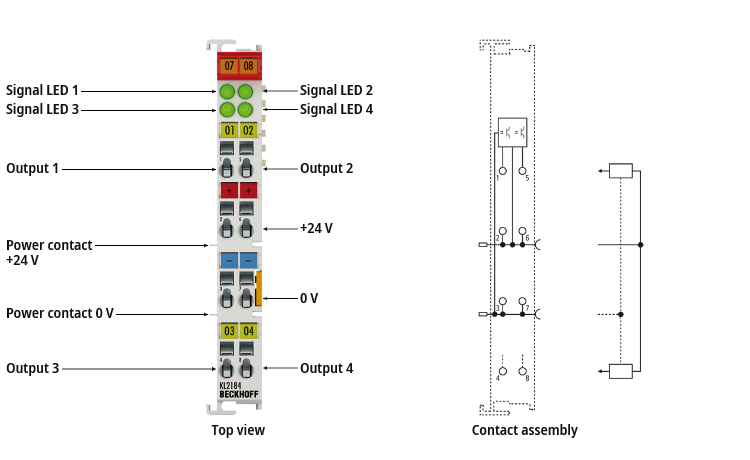

KL2184 - Contact assignment and LEDs

Output 1

1

Output 1

+24 V

2

+24 V (internally connected to terminal point 6 and positive power contact)

0 V

3

0 V (internally connected to terminal point 7 and negative power contact)

Output 3

4

Output 3

Output 2

5

Output 2

+24 V

6

+24 V (internally connected to terminal point 2 and positive power contact)

0 V

7

0 V (internally connected to terminal point 3 and negative power contact)

Output 4

8

Output 4

Signal LEDs 1 - 4

green

off

Signal voltage "0"

on

Signal voltage "1"
