Parameterization with KS2000

Connect the configuration interface of your fieldbus coupler with the serial interface of your PC via the configuration cable and start the KS2000 configuration software.

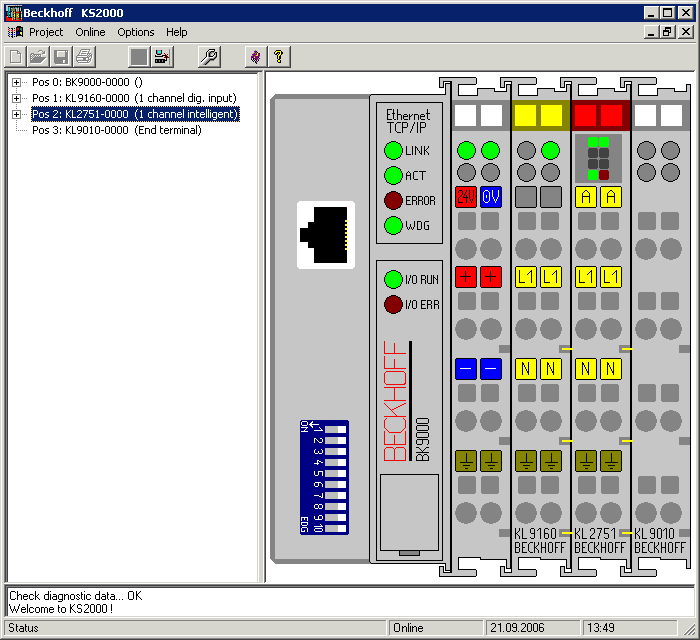

Fig.19: Display of the fieldbus station in KS2000

The left-hand KS2000 window displays the terminals of the fieldbus station in a tree structure.
The right-hand KS2000 window contains a graphic display of the fieldbus station terminals.

In the tree structure of the left-hand window, click on the plus-sign next to the terminal whose parameters you wish to change (item 2 in the example).

Fig.20: KS2000 tree branches for channel 1 of the KL2535

For the KL2751, the branches Register, Settings and ProcData are displayed:

• Register permits direct access to the registers of the KL2751.
• Under Settings you find dialog boxes for parameterization the KL2751.
• ProcData displays the KL2751 process data.
