KL2751- Application example
| |
Risk of injury through electric shock and damage to the device! Bring the Bus Terminals system into a safe, de-energized state before starting mounting, disassembly or wiring of the Bus Terminals! |
Power feed terminal
Notice | |
Risk of damage to the device! Bus Couplers, Bus Terminal controllers and power supply terminals for 24 V are not suitable for the supply of mains voltage (230 VAC) into the power contacts! They are designed only for voltages up to 24 V and would be destroyed if higher voltage was applied at their power contacts! It is imperative that you use a power feed terminal (e.g.: KL9150, KL9160, KL9250, KL9260) designed for 230 VAC to supply mains voltage (230 VAC) into the power contacts! |

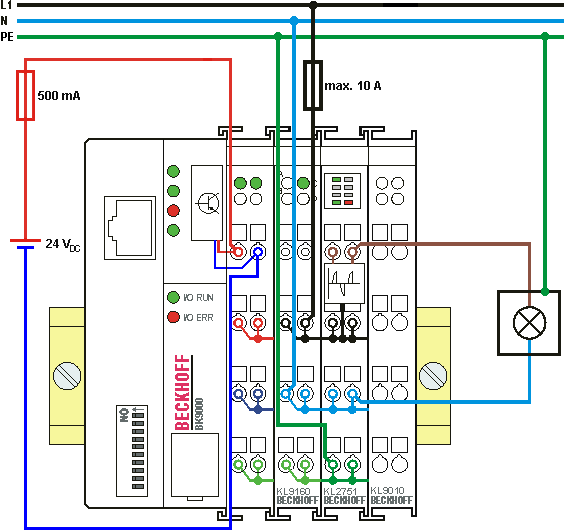

The example shows the control of an incandescent lamp by a KL2751. The mains voltage (230 VAC) is fed to the power contacts via the KL9160 power feed terminal.
Fig.16: KL2751 - Application example
| |
Protective earth (PE) If your luminaire needs to be earthed, connect its earthing contact directly to PE (protective earth) of your switch cabinet or sub-distribution board and not to the KL2751 dimmer terminal! |
Several dimmer terminals can be operated on one power feed terminal.
