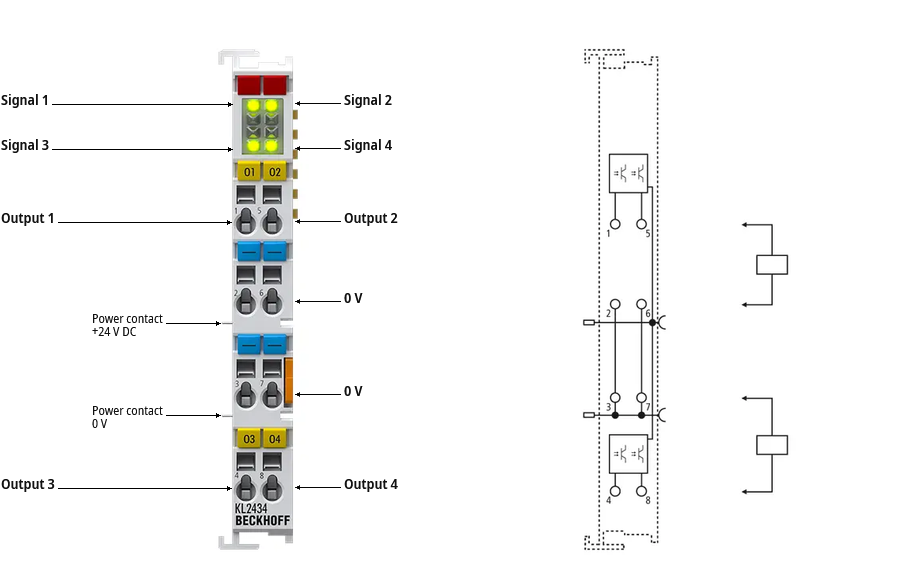

KL2434 - Connection and LEDs

Output 1

1

Output 1

0 V

2

Ground for output 1 (internally connected to terminal points 3, 6, 7, and negative power contact)

0 V

3

Ground for output 3 (internally connected to terminal points 2, 6, 7, and negative power contact)

Output 3

4

Output 3

Output 2

5

Output 2

0 V

6

Ground for output 2 (internally connected to terminal points 2, 3, 7, and negative power contact)

0 V

7

Ground for output 4 (internally connected to terminal points 2, 3, 6, and negative power contact)

Output 4

8

Output 4

Signal LEDs 1…4

green

off

Signal voltage “0”

on

Signal voltage “1”
