KL1889 - Introduction

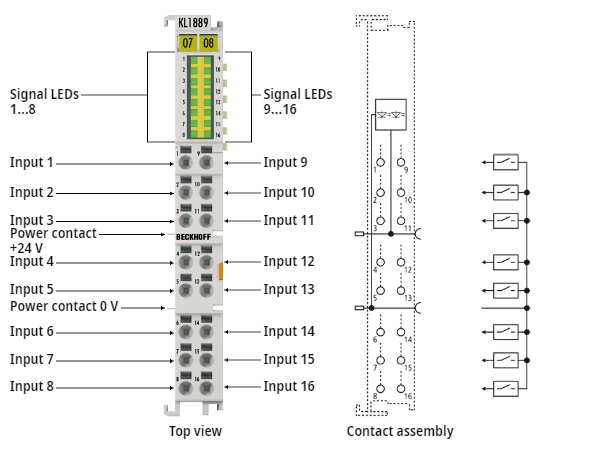

Fig.56: KL1889

Bus terminal, 16-channel digital input, 24 V_DC, 3 ms, ground switching

The KL1889 digital input terminal acquires the binary 24 V_DC control signals from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The bus terminal contains sixteen channels whose signal states are indicated by light emitting diodes. The power contacts are looped through. With the KL1889, the reference ground for all inputs is the 24 V_DC power contact.
