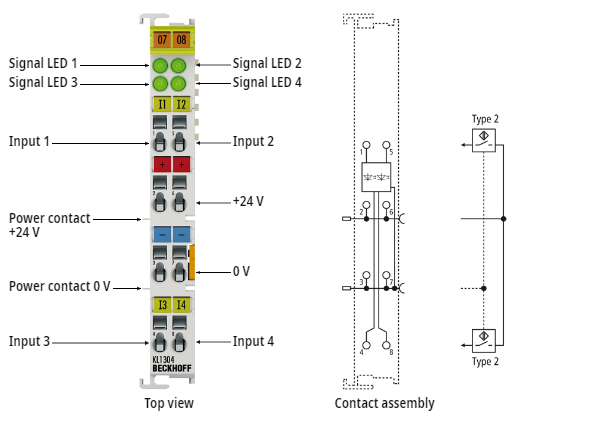

KL1304 - Introduction

Bus terminal, 4-channel digital input, 24 V_DC, 3 ms, type 2

The KL1304 digital input terminal acquires the binary 24 V_DC control signals from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The bus terminal has four channels, whose signal state is displayed by light emitting diodes.
