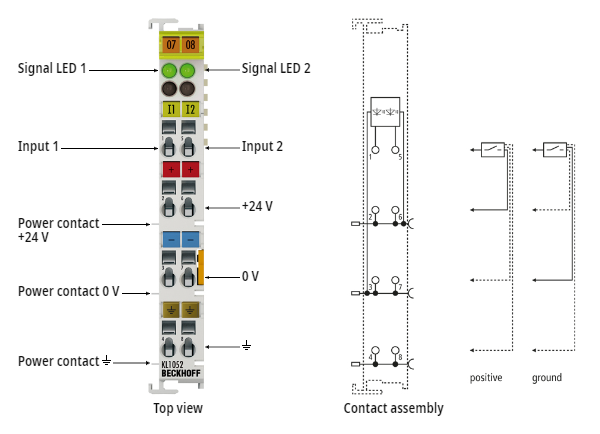

KL1052 - Introduction

Bus terminal, 2-channel digital input, 24 V_DC, 3 ms, positive/ground switching

The KL1052 digital input terminal acquires binary control signals (24 V_DC) from the process level and transmits them, in electrically isolated form, to the higher-level automation device. The bus terminal contains two channels that indicate its signal state by means of light emitting diodes.
