Housing

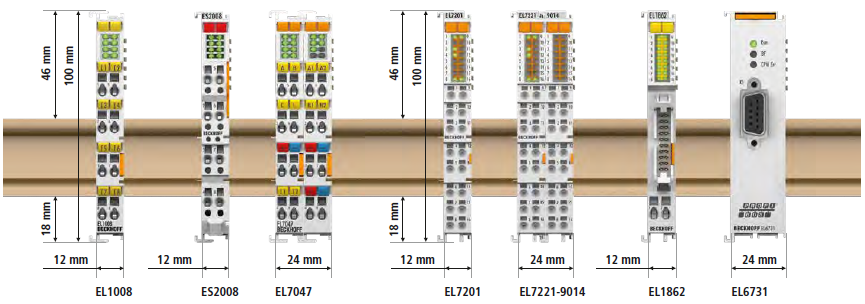

Housing example	Name	Dimensions W x H x D	Wiring
EL1008	terminal housing	approx. 12 mm x 100 mm x 70 mm	screwless spring-loaded system
ES2008	terminal housing with pluggable wiring	approx. 12 mm x 100 mm x 70 mm	screwless spring-loaded system
EL7047	terminal housing, double width	approx. 24 mm x 100 mm x 70 mm	screwless spring-loaded system
EL7201	HD housing	approx. 12 mm x 100 mm x 70 mm	tool-free spring-loaded terminals
EL7221‑9014	HD housing, double width	approx. 24 mm x 100 mm x 70 mm	tool-free spring-loaded terminals
EL1862	HD housing with pin strip	approx. 12 mm x 100 mm x 70 mm	pin strip
EL6731	KM housing	approx. 24 mm x 100 mm x 52 mm	various connectors
ELM3544	ELM housing	approx. 30 mm x 100 mm x 95 mm	cage clamp, push-in

For details on wiring, see chapter Mounting and wiring
