Dead time compensation

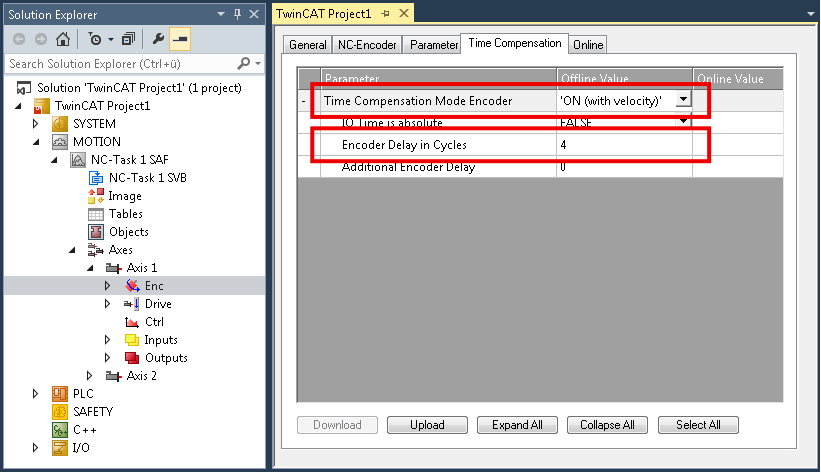

The dead time compensation of the axis can be set in the Time Compensation tab of the Axis1_ENC encoder settings. It should, in theory, be 3 cycles of the NC cycle time, although in practice 4 cycles were found to be preferable. The parameter Time Compensation Mode Encoder should be set to 'ON (with velocity)', the parameter Encoder Delay in Cycles to 4.
