Supply voltage downstream connection

The supply voltages applied to the supply voltage input are available at the forwarding output for supplying other devices.

Notice

Risk of overload

Excessive output currents from the forwarding output can cause the maximum permissible input current at the supply voltage input to be exceeded.

  • Ensure that the maximum input current of 16 A at the supply voltage input is not exceeded for either US or UP

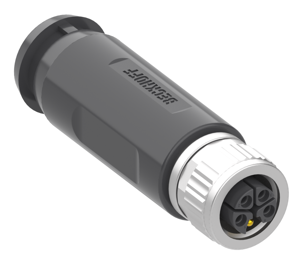

Supply voltage downstream connection 1:

M12 coupling

Pin

Function

Supply voltage downstream connection 2:

1

+24 VDC US

2

GNDP

3

GNDS

4

+48 VDC UP

5

⏚
