Beckhoff Identification Code (BIC)
The Beckhoff Identification Code (BIC) is increasingly being applied to Beckhoff products to uniquely identify them. The BIC is represented as a Data Matrix code (DMC, code schema ECC200); its content is based on ANSI standard MH10.8.2-2016.

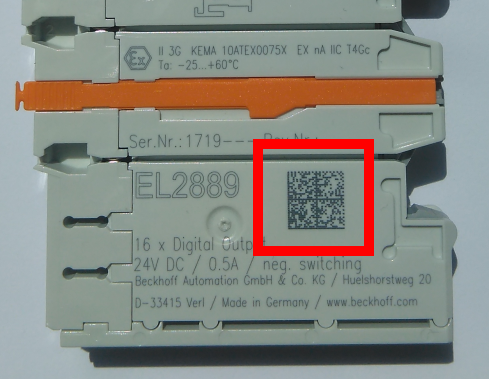

Fig.54: BIC as a Data Matrix code (DMC, ECC200 code scheme)The BIC is being introduced gradually across all product groups.
Depending on the product, it can be found in the following locations:
- on the packaging unit
- directly on the product (if space suffices)
- on the packaging unit and the product
The BIC is machine-readable and contains information that can be used for handling and product management by the customer.
Each item of information is clearly identifiable with the data identifier (ANSI MH10.8.2-2016). The data identifier is followed by a character string. Both together have a maximum length stated by the following table. If the items of information are shorter, spaces are added.
The following information may be present; items 1 through 4 are always included, while the others depend on the product family's requirements:
Item no. | Type of information | Explanation | Data identifier | Number of characters including the data identifier | Example |
|---|---|---|---|---|---|
1 | Beckhoff order number | Beckhoff order number | 1P | 8 | 1P072222 |
2 | Beckhoff Traceability Number (BTN) | Unique serial number, see note below | SBTN | 12 | SBTNk4p562d7 |
3 | Article description | Beckhoff article description, e.g. EL1008 | 1K | 32 | 1KEL1809 |
4 | Quantity | Quantity in packaging unit, e.g. 1, 10, etc. | Q | 6 | Q1 |
5 | Batch number | Optional: Year and week of production | 2P | 14 | 2P401503180016 |
6 | ID/serial number | Optional: Previous serial number system, e.g., for safety products or calibrated terminals | 51S | 12 | 51S678294 |
7 | Variant | Optional: Product variant number on the basis of standard products | 30P | 12 | 30PF971, 2*K183 |
... |
|
|
|
|
|
Beckhoff uses additional types of information and data identifiers for internal processes.
Structure of the BIC
Example of composite information consisting of items 1 through 4 and the example value mentioned above in item 6. The data identifiers are highlighted in bold:
1P072222SBTNk4p562d71KEL1809 Q1 51S678294
The same number as a DMC:
Fig.55: Example DMC 1P072222SBTNk4p562d71KEL1809 Q1 51S678294BTN
An important component of the BIC is the Beckhoff Traceability Number (BTN, item no. 2). The BTN is a unique 8-character serial number that will replace all other serial number systems at Beckhoff in the future (e.g. batch designations on IO components, previous serial number circle for safety products, etc.). The BTN is also being introduced gradually, so it may not yet be coded in the BIC.
