Distributed Clocks
From Firmware 03
The function "Distributed Clocks" enables equidistant sampling of the measured values. Equidistant sampling is a prerequisite for the application of the Nyquist-Shannon sampling theorem.
A possible use case for the "Distributed Clocks" would be, for example, a frequency analysis of the measured acceleration values.
Enable
Notice | |
Measured value filters are automatically disabled If you enable Distributed Clocks, all measured value filters are automatically disabled. The configuration of the measured value filters in the CoE directory remains unchanged. |

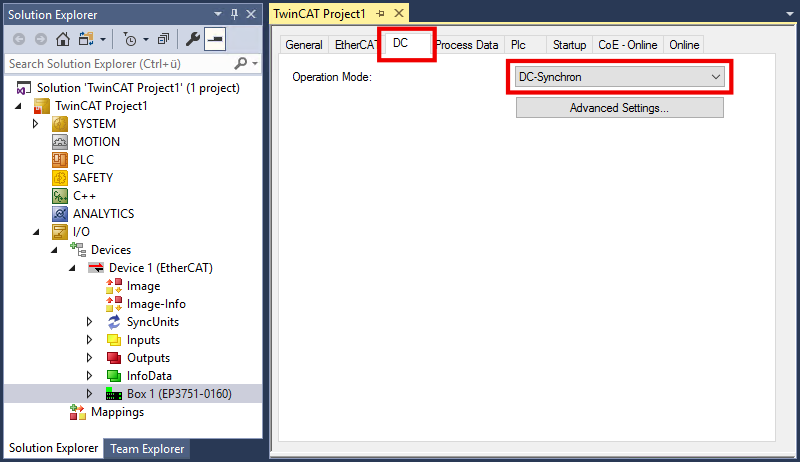

- 1. On the “DC” tab, select the “DC-Synchron” option in the “Operation Mode” list box.
- 2. Activate the configuration.
