EP2338-2002 - Process image

DI Inputs

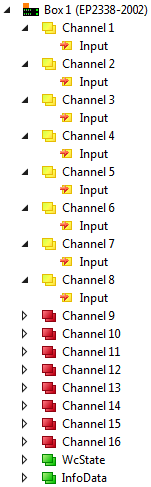

You can find the digital inputs at "Channel 1" to "Channel 8".

EP2338-2002 - Process image 1:

Data types

EP2338-2002 - Process image 2: Channel n
EP2338-2002 - Process image 3: Input: BIT

DO Outputs

You can find the digital outputs at "Channel 1" to "Channel 8".

EP2338-2002 - Process image 4:

Data types

EP2338-2002 - Process image 5: Channel n
EP2338-2002 - Process image 6: Output: BIT
