EP2038-000x - Process image

Channel 1 to Channel 8

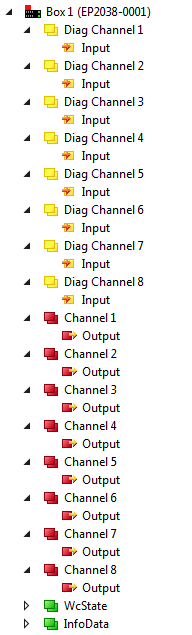

Under Diag Channel 1 to Diag Channel 8 you will find the diagnostic inputs of the 8 digital outputs of the module. Under Channel 1 to Channel 8 you will find the 8 digital outputs of the module (here as an example the EP2038-0001).
