EtherCAT status in Config Mode (EP1839-0022, EP1839-0042)
(only applies to EP1839-0042 with firmware 02 and higher)
Ex factory, the box is configured so that it automatically switches to "Safe-Operational" status when operating in Config Mode. In this state, all switchable outputs are in the safe state, i.e. switched off.
You can set the box to automatically switch to "Operational" state in Config Mode:

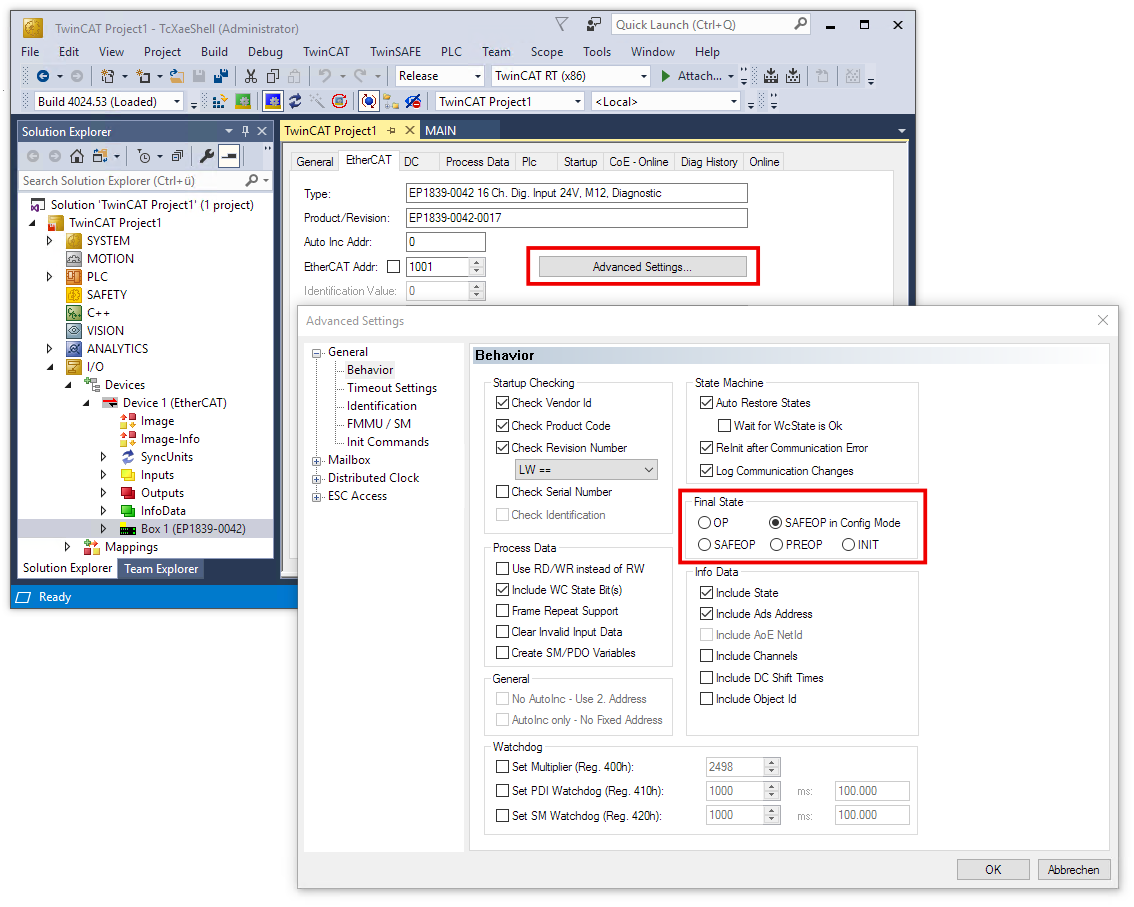

- 1. Click on the box in Solution Explorer.
- 2. Open the "EtherCAT" tab.
- 3. Click the "Advanced Settings …" button.
- 4. In the "Final State" field, select the "OP" option.
- 5. Confirm with "OK".
