BG2000 - EtherCAT Box protection enclosures

WARNING

Risk of electric shock and damage of device!

Bring the EtherCAT system into a safe, powered down state before starting installation, disassembly or wiring of the modules!

ATEX

WARNING

Mount a protection enclosure!

To fulfill the special conditions according to ATEX, a BG2000-0000 or BG2000-0010 protection enclosure has to be mounted over the EtherCAT Box.

Installation

Put the cables for EtherCAT, power supply and sensors/actuators through the hole of the protection enclosure.

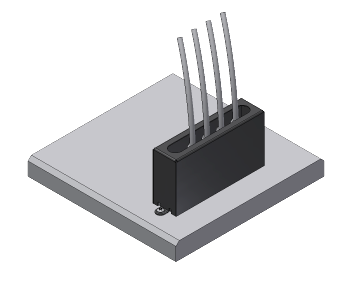

BG2000 - EtherCAT Box protection enclosures 1:Fig.6: BG2000 - putting the cables

Fix the wires for EtherCAT, power supply and sensors/actuators to the EtherCAT Box. Also seal unused connectors with protective caps!

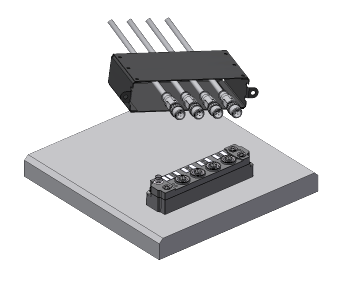

BG2000 - EtherCAT Box protection enclosures 2:Fig.7: BG2000 - fixing the cables

Mount the protection enclosure over the EtherCAT Box.

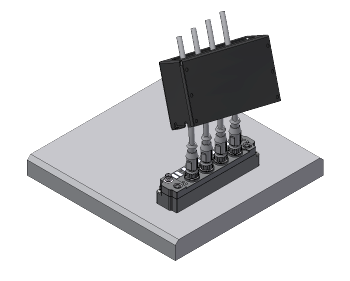

BG2000 - EtherCAT Box protection enclosures 3:Fig.8: BG2000 - mounting the protection enclosure
