ELM7212 and ELM7222

WARNING

Safety functions require connection cables from Beckhoff

The safety certification of product variants -9016 and -9018 requires the use of connection cables from Beckhoff.

  • Only use connection cables from Beckhoff for safety applications.

Notice

Incorrect signal levels due to electromagnetic interference

The digital inputs are optimized for fast signal transmission and are therefore susceptible to electromagnetic interference.

Under the influence of electromagnetic interference, a false signal level can be detected.

  • If necessary, use shielded signal lines.

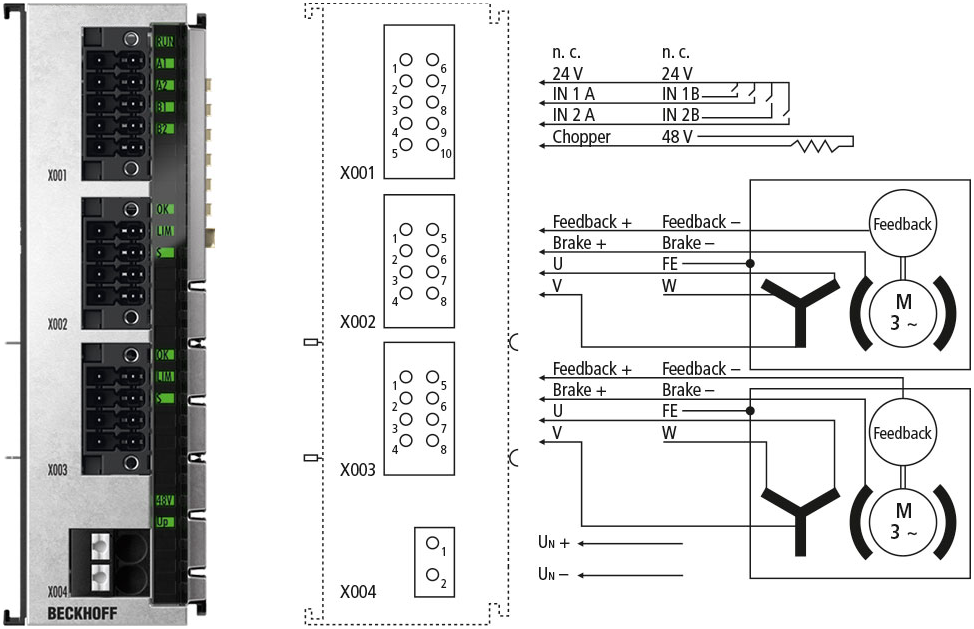

ELM7212 and ELM7222 1:

X001

Connection

Pin

Name

Function

ELM7212 and ELM7222 2:

1

n.c.

-

2

24 V

24 V UP Voltage output

3

IN 1 A

Fast digital input 1 for a Touch Probe (limit switch) on motor channel A

4

IN 2 A

Fast digital input 2 for a Touch Probe (limit switch) on motor channel A

5

Chopper

Connection for a passive braking resistor.

Connect the other connection cable of the braking resistor to pin 10.

6

n.c.

-

7

24 V

24 V UP Voltage output

8

IN 1 B

Fast digital input 1 for a Touch Probe (limit switch) on motor channel B

9

IN 2 B

Fast digital input 2 for a Touch Probe (limit switch) on motor channel B

10

DC+

Connection for a passive braking resistor.

Connect the other connection cable of the braking resistor to pin 5.

X002
X003

Connection

Pin

Name

Function

ELM7212 and ELM7222 3:

1

Feedback+

OCT data cable

2

Brake+

Output for the motor brake

3

U

Motor phase U

4

V

Motor phase V

5

Feedback-

OCT data cable

6

Brake-

Output for the motor brake

7

FE

Functional earth

8

W

Motor phase W

Connection example with a ZK7404 motor cable:

ELM7212 and ELM7222 4:

X004

Connection

Pin

Name

Function

ELM7212 and ELM7222 5:

1

DC+

DC link voltage input

2

GND

Ground
