Creating a Drive Manager 2 project

Proceed as follows to create the project:

1. Select the menu item File > Add > New Project in TwinCAT

A dialog box opens.

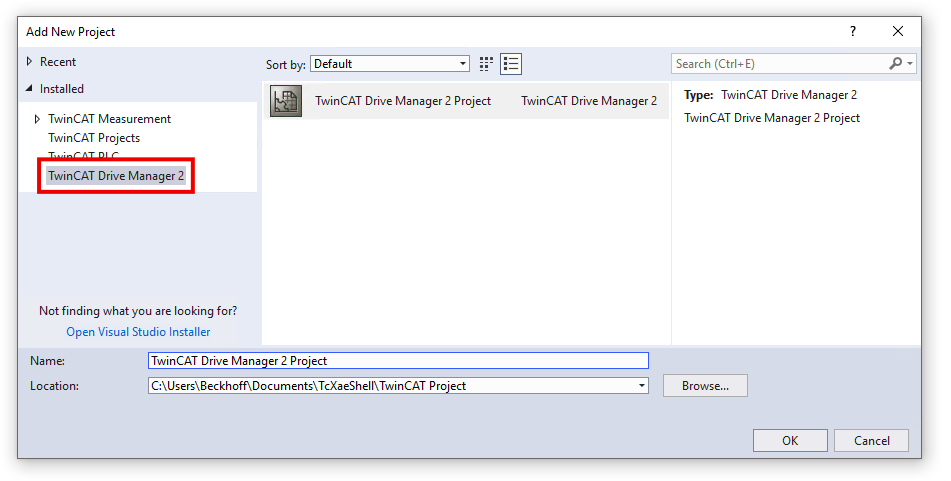

2. Select “Installed” > “TwinCAT Drive Manager 2” in the dialog box on the left-hand side and click on OK
Creating a Drive Manager 2 project 1:

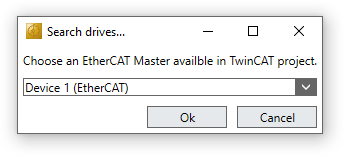

If the TwinCAT project contains several EtherCAT masters, the following dialog box appears:
Creating a Drive Manager 2 project 2:

Choose the EtherCAT master to which the EL7062 is connected

A dialog box opens.

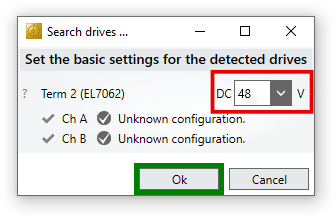

3. Set the motor supply in the dialog box and click on "OK".
Creating a Drive Manager 2 project 3:

The project was created.

The EL7062 was integrated into the project.
