Integrating into a TwinCAT project

1. Include EL7062 in the I/O configuration of a TwinCAT project. Optional scanning or manual
In the course of the integration, a dialog box appears:

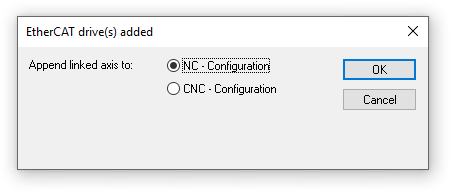

Integrating into a TwinCAT project 1:
2. Select “NC - Configuration” and click on “OK”
The EL7062 is integrated into the I/O configuration and the NC configuration of your TwinCAT project

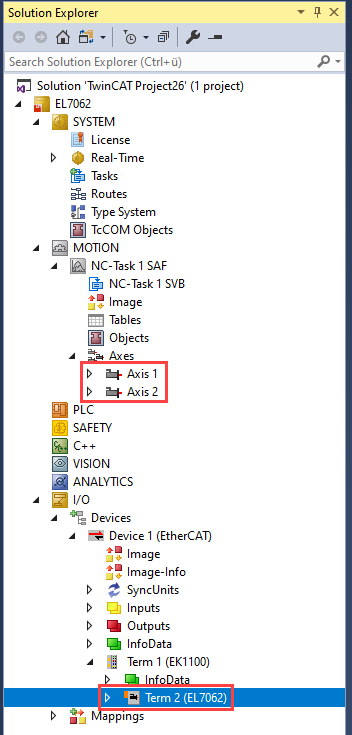

Integrating into a TwinCAT project 2:

Notice

The internal memory may contain incorrectly set parameters

Risk of defect.
