EL6821 - Devices diagnostic functions
The CoE directory can be used to read diagnostic information on DALI communication (0xA000:0 "Diag") and the LED status (object 0xF915:0 "LED status").
Diagnostics via object 0xA000:0
The terminal has integrated diagnostics that can be read in object 0xA000:0.

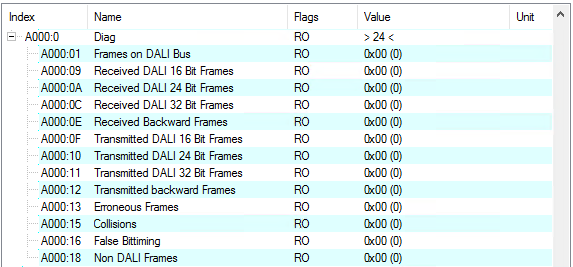

Fig.98: EL6821 - CoE object 0xA000 "Diag"Index | Name | Description |
|---|---|---|
0xA000:01 | Frames on DALI Bus | Frames on DALI bus |
0xA000:09 | Received DALI 16 Bit Frames | Received DALI 16-bit frames |
0xA000:0A | Received DALI 24 Bit Frames | Received DALI 24-bit frames |
0xA000:0C | Received DALI 32 Bit Frames | Received DALI 32-bit frames |
0xA000:0E | Received Backward Frames | Received DALI 8-bit response frames |
0xA000:0F | Transmitted DALI 16 Bit Frames | Transmitted DALI 16-bit frames |
0xA000:0F | Transmitted DALI 24 Bit Frames | Transmitted DALI 24-bit frames |
0xA000:11 | Transmitted DALI 32 Bit Frames | Transmitted DALI 32-bit frames |
0xA000:12 | Transmitted backward Frames | Transmitted DALI 8-bit backward frames |
0xA000:13 | Erroneous Frames | Erroneous frames |
0xA000:15 | Collisions | Collisions Observe the information and notes in the chapters "Priorities" and "Bus timing" |
0xA000:16 | False Bittiming | A frame was received that deviates from the prescribed bit timing (including tolerance) and is therefore recognized as incorrect. |
0xA000:18 | Non DALI Frames | Non DALI frames |
LED status in object 0xF915:0 using the EL6821 terminal as an example
LED | Index | Value | LED Status | Meaning |
|---|---|---|---|---|
1 | Run-LED (green) | 0xF915:01 | 0x00 00 FF 00 | Off | EtherCAT State Machine: INIT |
0x80 00 FF 00 | Flashing uniformly | EtherCAT State Machine: PREOP | ||
0x81 00 FF 00 | Flashing slowly | EtherCAT State Machine: SAFEOP | ||
0x82 00 FF 00 | Flashing rapidly | EtherCAT State Machine: BOOT | ||
0xFF 00 FF 00 | On | EtherCAT State Machine: OP | ||
Status LEDs (green) |
| 0xFF 00 FF 00 | On | 2/6 | Signal is sent/received |
0x00 00 FF 00 | Off | 2/6 | no signal is sent/received | ||
5 | Error LED (red) | 0xF915:05 | 0xFF 00 FF 00 | On | No 24 V power supply or hardware error |
0x00 00 FF 00 | Off | No error | ||
