Introduction

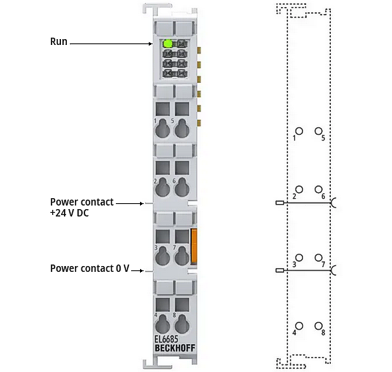

Fig.4: EL6685 | EtherCAT Terminal, reference clock, high-precision, distributed clocks

The EL6685 serves as a high-precision reference clock for the distributed clocks system. For applications with the highest demands on time measurement, the built-in oscillator significantly increases the basic accuracy of the timer.
