Button Port settings

This feature is presently only enabled for the real-time Ethernet protocol (no EL/ELX6233). With this a second PROFINET port and an intelligent switch can thus be realized with a second network card (Intel chipset). It is intended to repeat this feature x times; however, it is presently limited to one additional port.

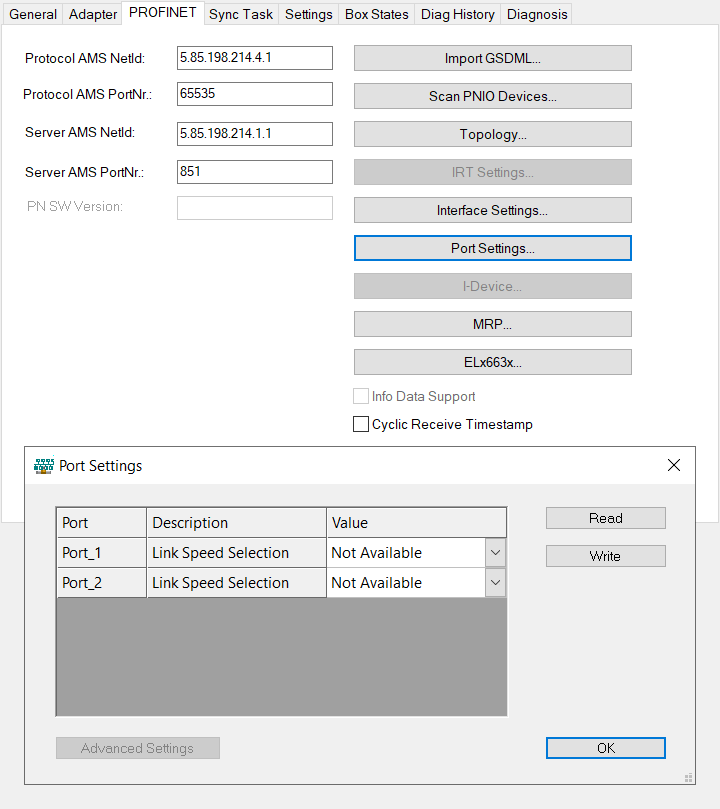

Button Port settings 1:Fig.19: PROFINET Port Settings dialog

In future, the MRP functionality (Media Redundancy Protocol) can also be enabled via this menu. Various settings can be made for this.
